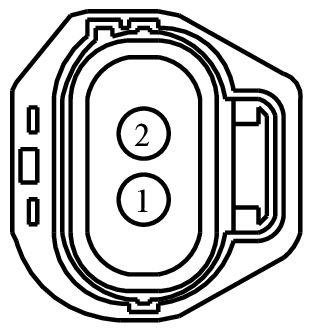

Connector End View (C1914) - INTERCOOLER FAN

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1914	INTERCOOLER FAN	BK	14K733	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE626 (BU-GN)	14	RUNNER - INTAKE MANIFOLD CONTROL # MONITOR (IMRCM)	N/A
2	GD130 (BK-YE)	14	GROUND - HEADLAMP PANEL LEFT # 2ND STUD	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1496

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-KB

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Glow Plug
• Motor - Fuel Filler Door
• Motor - Power Slider
• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
