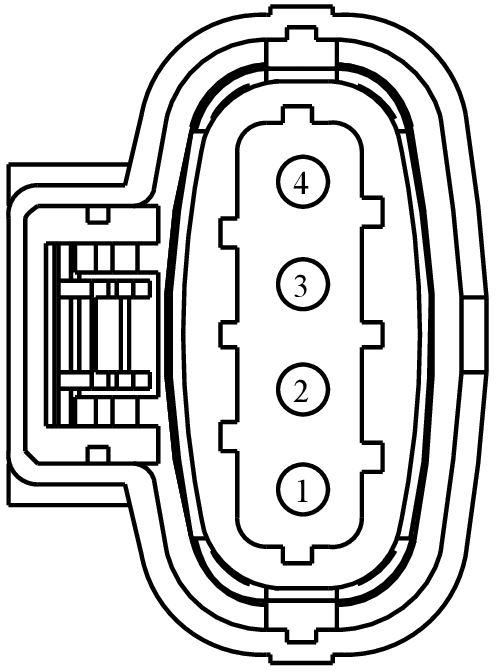

Connector End View (C1911) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1911	MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR	BK	12A690	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
XL3T-14474-DA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE805 (GY-OG)	20	SENSOR - MANIFOLD TEMPERATURE	XL3T-14474-DA
2	LE329 (BU)	20	CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP)	XL3T-14474-DA
3	RE804 (GY-BU)	20	DRIVER - FUEL PUMP MOTOR (FPDM)	XL3T-14474-DA
4	VE804 (GN-BN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP)	XL3T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1232

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ATA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Sensor - Manifold Pressure/Intake Temperature
