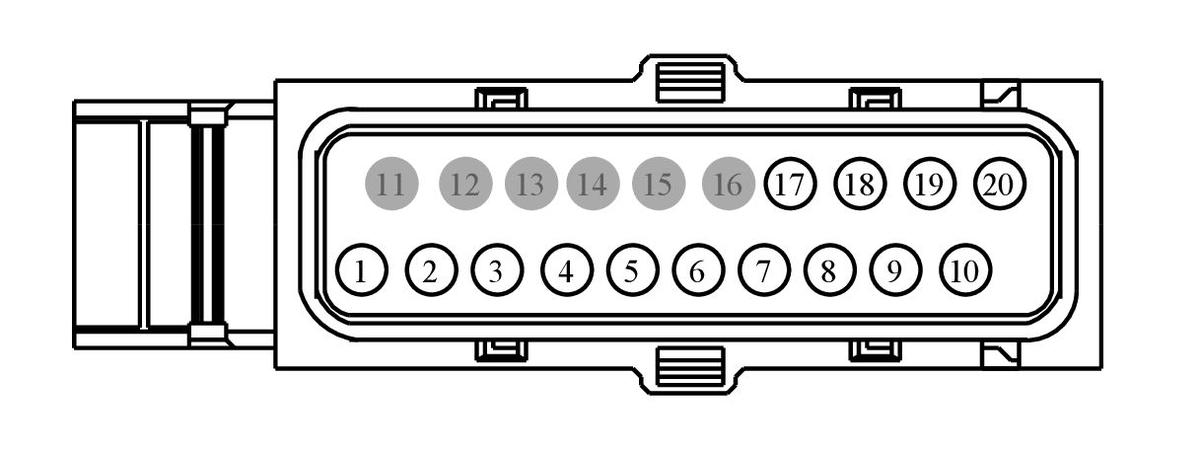

Connector End View (C1909A) - 6F35 TRANSMISSION

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1909A	6F35 TRANSMISSION	BK	12A690	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1S7T-14474-AB	Not Available
7U5T-14474-LA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RET35 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS)	1S7T-14474-AB
2	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	1S7T-14474-AB
3	CET09 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS]	1S7T-14474-AB
4	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS]	1S7T-14474-AB
5	CET25 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 2 (SS2)	1S7T-14474-AB
6	CET10 (BU-GY)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS]	1S7T-14474-AB
7	CET18 (GY-YE)	20	CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1)	1S7T-14474-AB
8	CET05 (BN-GN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS]	1S7T-14474-AB
9	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS]	1S7T-14474-AB
10	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS]	1S7T-14474-AB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	VET32 (VT)	20	SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS]	7U5T-14474-LA
18	LET57 (WH-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 2 (TR-A2BVREF)	1S7T-14474-AB
19	RET26 (BN-GN)	20	CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS)	1S7T-14474-AB
20	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS)	1S7T-14474-AB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1203

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ACB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:
