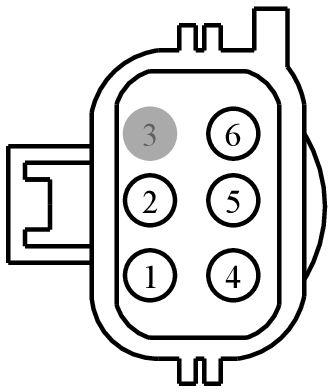

Connector End View (C1729) - FUEL FIRED BOOSTER HEATER MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1729	FUEL FIRED BOOSTER HEATER MODULE	BK	14K733	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB24 (VT-RD)	14	FUSE - 24 OR CIRCUIT BREAKER	van	N/A
1	SBB27 (BU-RD)	14	FUSE - 27 OR CIRCUIT BREAKER	N/A
2	GD132 (BK-GY)	14	GROUND - HEADLAMP PANEL RIGHT # 2ND STUD	N/A
3	*	*	Not Used	N/A
4	VDB06 (GY-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
5	VDB07 (VT-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
6	CHF01 (BN-BU)	18	CTRL MOD. - FUEL FIRED HEATER # FFH FUEL PUMP	N/A

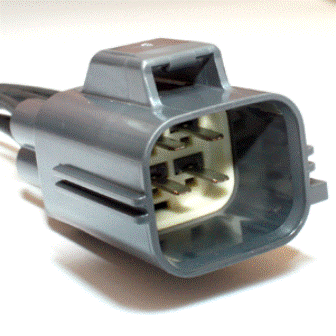

Available Pigtail Kits

Pigtail Kit Part Number WPT-163

Courtesy of FORD MOTOR COMPANY

Service Part Number:

1U2Z-14S411-BUA

Gauge:

14

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Motor - Windshield Wiper
