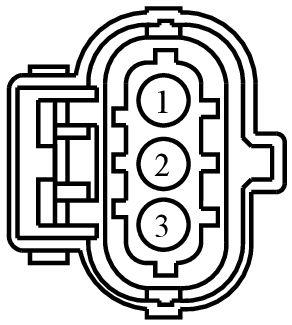

Connector End View (C1694) - MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1694	MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR	BK	12A690/12C508	9F479	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE803 (YE)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP)	1.6L GTDI	N/A
2	RE329 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIG RTN)	1.6L GTDI	N/A
3	LE329 (BU)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF)	1.6L GTDI	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1068

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-JA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Manifold Absolute Pressure (MAP)

Pigtail Kit Part Number WPT-1369

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-JB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Turbo Intake Pressure/Temperature
