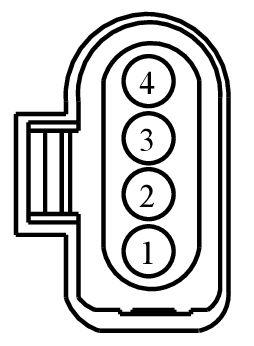

Connector End View (C1655) - DRIVER SIDE WINDSHIELD WIPER MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1655	DRIVER SIDE WINDSHIELD WIPER MOTOR	BK	14K733	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CRW00 (BN-RD)	12	SWITCH - PANIC ALARM	N/A
2	GD131 (BK)	12	GROUND - HEADLAMP PANEL RIGHT	N/A
3	CRW00 (GY-VT)	20	SWITCH - PANIC ALARM	N/A
4	CRW00 (GY-VT)	20	SWITCH - PANIC ALARM	N/A

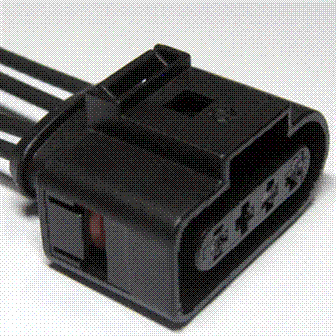

Available Pigtail Kits

Pigtail Kit Part Number WPT-1135

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-JA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Motor - Windshield Wiper
