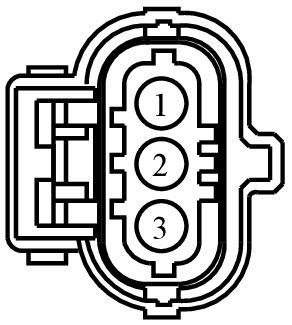

Connector End View (C1654) - CAMSHAFT POSITION 12 (CMP12) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1654	CAMSHAFT POSITION 12 (CMP12) SENSOR	BK	12A690	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-KA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE707 (GY-VT)	20	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2)	9U5T-14474-KA
2	RE144 (BN)	20	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE	9U5T-14474-KA
3	LE144 (GN-BN)	20	CTRL MOD. - POWERTRAIN # ENGINE OIL QUALITY SENSOR	9U5T-14474-KA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1066

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-GA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Fuel Rail Pressure
