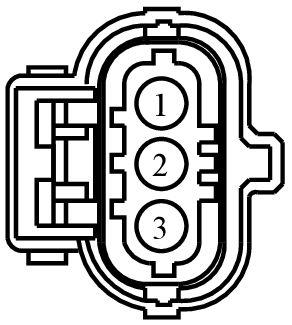

Connector End View (C1653) - CAMSHAFT POSITION 11 (CMP11) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1653	CAMSHAFT POSITION 11 (CMP11) SENSOR	BK	12A690	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-KA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE706 (GY-VT)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1)	9U5T-14474-KA
2	RE143 (VT)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1	9U5T-14474-KA
3	LE143 (GN-BN)	20	CTRL MOD. - POWERTRAIN # ENGINE OIL QUALITY SENSOR	9U5T-14474-KA

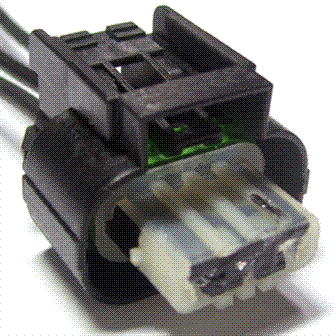

Available Pigtail Kits

Pigtail Kit Part Number WPT-1066

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-GA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Fuel Rail Pressure
