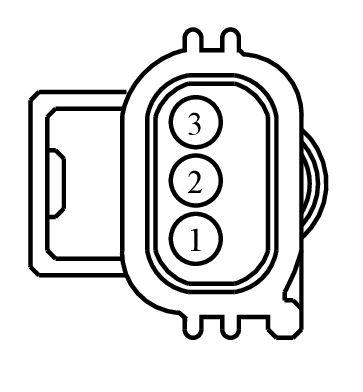

Connector End View (C1651) - ACTIVE GRILLE SHUTTER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1651	ACTIVE GRILLE SHUTTER	BK	14K733	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE146 (VT-OG)	20	CTRL MOD. - POWERTRAIN # EXHAUST GAS TEMPERATURE SENSOR BANK 1 PRE CAT -	N/A
2	VDC46 (BU-BN)	20	CTRL MOD. - GENERATOR (ALTERNATOR) LIN BUS (NON-PCM CONTROLLED)	N/A
3	CBB08 (GY-YE)	20	FUSE - 8 OR CIRCUIT BREAKER	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-493

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-NPA

Gauge:

18

Pin material:

Tin

Cavities:

3

Vehicle Uses:

• Switch - Heater A/C Temp Control
