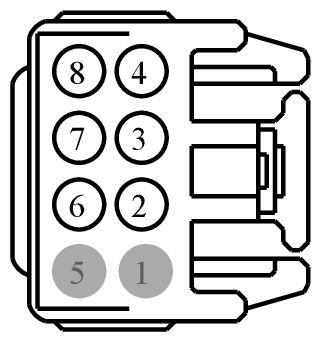

Connector End View (C504B) - DRIVER DOOR WINDOW CONTROL SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C504B | DRIVER DOOR WINDOW CONTROL SWITCH | LT GY | 14A584 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | RPL63 (BK) | 12 | CTRL MOD. - DOOR LOCK # LATCH DRIVER | N/A | ||||
| 3 | VPW39 (BK) | 14 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2 | N/A | ||||
| 4 | RPW37 (BK) | 14 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CPW00 (BK) | 12 | SWITCH - SEAT ADJUST. REAR RIGHT RECLINE REARWARD | N/A | ||||
| 6 | SBB36 (GN-RD) | 20 | FUSE - 36 OR CIRCUIT BREAKER | N/A | ||||
| 7 | VPW38 (BK) | 12 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1 | N/A | ||||
| 8 | LPW36 (BK) | 12 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS | N/A | ||||
