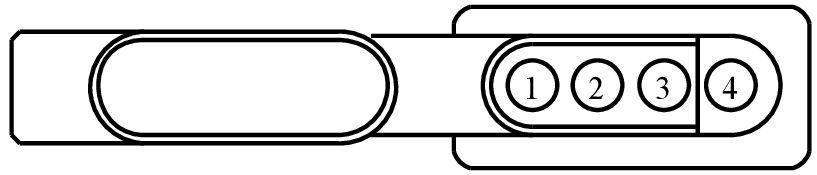

Connector End View (C473) - TRAILER SOCKET
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C473 | TRAILER SOCKET | NA | 15K868 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CAT10 (RD) | 14 | CTRL MOD. - TRAILER TOW # STOP LAMPS INDEPENDENT | N/A | ||||
| 2 | CAT10 (RD) | 14 | CTRL MOD. - TRAILER TOW # STOP LAMPS INDEPENDENT | N/A | ||||
| 3 | CAT11 (BN) | 14 | RELAY - TRAILER TOW PARK LAMPS | N/A | ||||
| 4 | GD132 (BK-VT) | 14 | GROUND | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-840
Service Part Number:
5U2Z-14S411-JA
Gauge:
12
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Trailer Tow - Vehicle Side
