Connector End View (C311) - INLINE

Inline: Description Color Harness Base Part # Service Pigtail
C311 INLINE BK 1401414401 Not Available

MALE

Harness

14014

FEMALE

Harness

14401

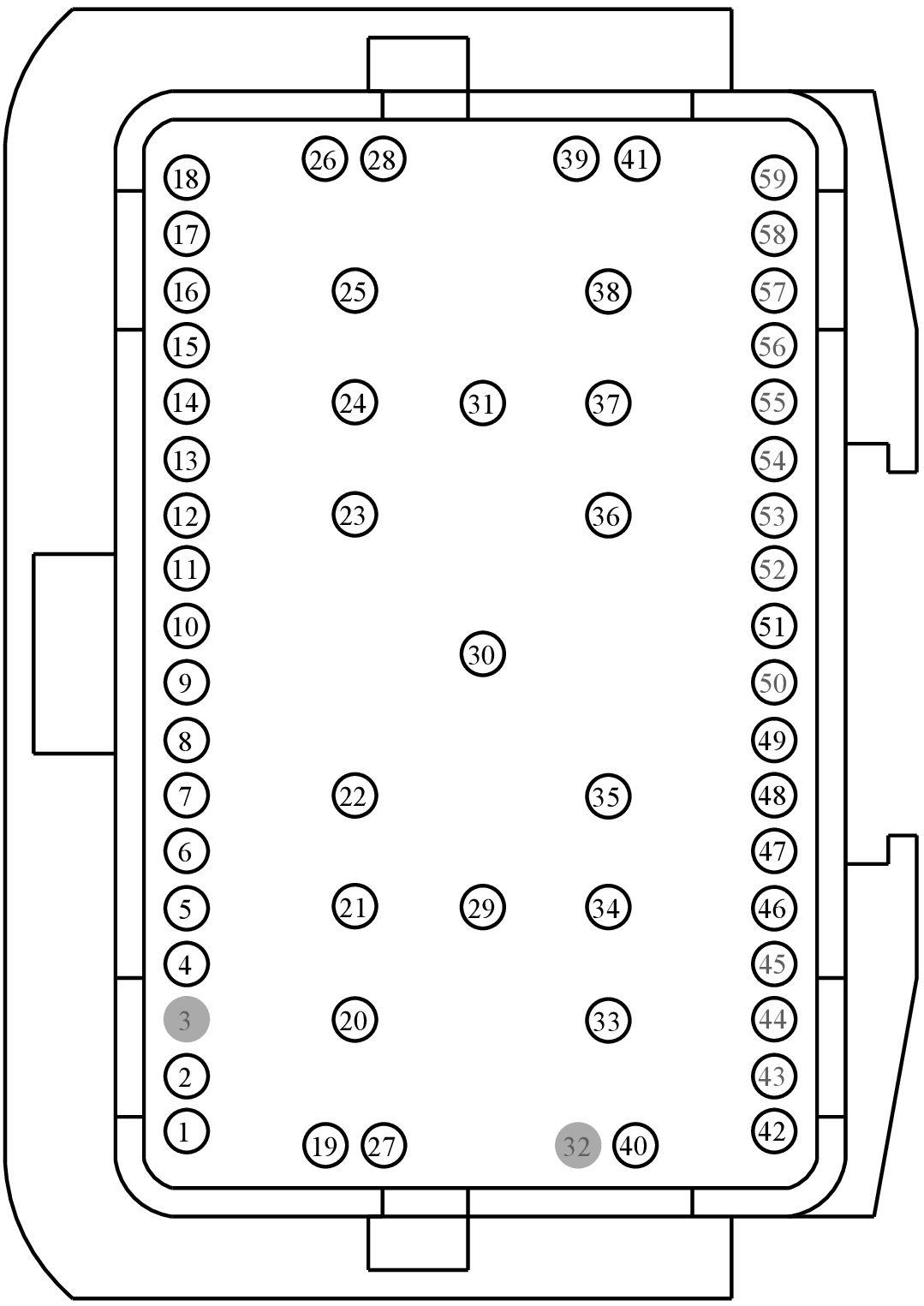

GFDWR19066Courtesy of FORD MOTOR COMPANY

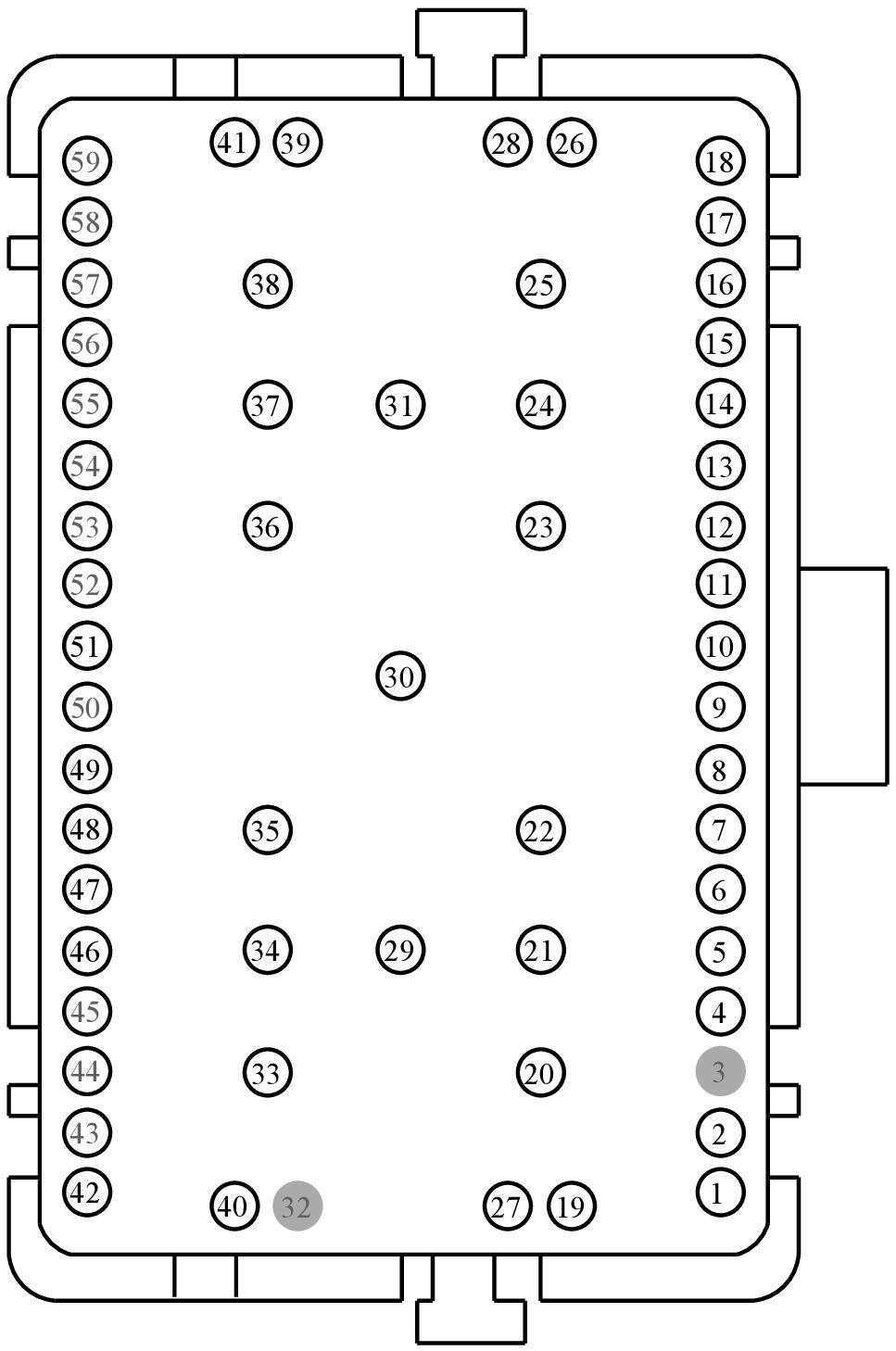

GFDWR19067Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 RMP09 (BU-GN) 22 N/A
2 GD338 (BK-WH) 22 N/A
3 * * N/A
4 CYD05 (YE) 22 N/A
5 CBP17 (BN-GN) 20 N/A
5 CLN09 (YE-GN) 20 N/A
6 CLN27 (WH-BN) 20 N/A
7 CR120 (BU-OG) 20 N/A
8 RR120 (BN-GN) 20 N/A
9 SBR38 (BN-RD) 20 N/A
10 SBR41 (VT-RD) 20 N/A
11 RMP08 (VT-OG) 22 N/A
12 CMP08 (GN-BU) 22 N/A
13 CMP02 (GN-BU) 22 N/A
14 CMP18 (GN-BN) 22 N/A
15 CR115 (BN) 22 N/A
16 CHS32 (RD) 20 N/A
17 CMP09 (BN-BU) 22 N/A
18 CBP17 (BN-GN) 20 N/A
19 CHS32 (BN) 20 N/A
20 CBR11 (BU-RD) 20 N/A
20 CBR99 (BU) 22 N/A
20 SMP22 (YE-VT) 20 14014-without Start-Stop N/A
21 VME07 (WH) 18 N/A
22 RME07 (WH-BN) 18 N/A
23 VDB04 (WH-BU) 22 N/A
24 VDB05 (WH) 22 N/A
25 CLN27 (WH-BN) 20 N/A
26 RR112 (GN-OG) 18 N/A
27 CPL43 (VT-GY) 22 N/A
28 CR112 (BU-GY) 18 N/A
29 CBR16 (BU-GN) 12 N/A
29 CLS22 (YE) 16 N/A
30 SBP46 (BN-RD) 10 N/A
30 SBR27 (BU-RD) 10 N/A
31 CLS26 (YE) 16 N/A
31 SYV02 (RD-YE) 10 N/A
32 * * N/A
33 SBR42 (VT-RD) 16 N/A
34 RME10 (WH-OG) 18 N/A
35 VME10 (WH-VT) 18 N/A
36 RME12 (BN-BU) 18 N/A
37 VME12 (BN-WH) 18 N/A
38 CBR99 (BU) 22 N/A
38 SBP46 (BN-RD) 10 14014-FOE N/A
38 SMP22 (YE-VT) 20 N/A
38 SMP22 (YE-VT) 22 N/A
39 CR109 (BU-GY) 18 N/A
40 SBP06 (BN-RD) 22 N/A
41 RR109 (GN-OG) 18 N/A
42 VR223 (BU-WH) 22 N/A
43 * * N/A
44 * * N/A
45 * * N/A
46 CHS32 (RD) 20 N/A
47 RME09 (BN-YE) 18 N/A
48 VME09 (WH-GN) 18 N/A
49 VDB06 (GY-OG) 22 N/A
50 * * N/A
51 VDB07 (VT-OG) 22 N/A
52 * * N/A
53 * * N/A
54 * * N/A
55 * * N/A
56 * * N/A
57 * * N/A
58 * * N/A
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 RMP09 (BU-GN) 22 N/A
2 GD338 (BK-WH) 22 N/A
3 * * N/A
4 CYD05 (YE) 22 N/A
5 CLN09 (YE-GN) 20 N/A
6 CLN27 (BN-GN) 20 N/A
7 CR120 (BU-OG) 20 N/A
8 RR120 (BN-GN) 20 N/A
9 SBR38 (BN-RD) 20 N/A
10 SBR41 (VT-RD) 20 N/A
11 RMP08 (VT-OG) 22 N/A
12 CMP08 (GN-BU) 22 N/A
13 CMP02 (GN-BU) 22 N/A
14 CMP18 (GN-BN) 26 N/A
15 CR115 (BN) 26 N/A
16 CHS32 (RD) 20 N/A
17 CMP09 (BN-BU) 22 N/A
18 CBP17 (BN-GN) 20 N/A
19 CHS32 (BN) 20 N/A
20 CBR99 (BU) 22 N/A
21 VME07 (WH) 18 N/A
21 VME11 (VT-OG) 18 N/A
22 RME07 (WH-BN) 18 N/A
22 RME11 (YE-OG) 18 N/A
23 VDB04 (WH-BU) 22 N/A
24 VDB05 (WH) 22 N/A
25 CBP17 (BN-GN) 20 N/A
25 CLN27 (BN-GN) 20 N/A
26 RR112 (GN-OG) 18 N/A
27 CPL43 (VT-GY) 22 N/A
28 CR112 (BU-GY) 18 N/A
29 CBR16 (BU-GN) 12 N/A
29 CLS22 (YE) 16 N/A
30 SBR27 (BU-RD) 10 N/A
31 CLS26 (GN) 16 N/A
31 SYV01 (RD) 12 N/A
32 * * N/A
33 SBR42 (VT-RD) 16 N/A
34 RME08 (GY-OG) 18 N/A
34 RME10 (WH-OG) 18 N/A
35 VME08 (GN-OG) 18 N/A
35 VME10 (WH-VT) 18 N/A
36 RME12 (BN-BU) 18 N/A
37 VME12 (BN-WH) 18 N/A
38 CBR99 (BU) 22 N/A
39 CR109 (BN-BU) 18 N/A
40 SBP06 (BN-RD) 22 N/A
40 SBP09 (BN-RD) 22 N/A
41 RR109 (BU-GN) 18 N/A
42 CBP02 (GN) 20 N/A
43 * * N/A
44 * * N/A
45 * * N/A
46 CHS32 (RD) 20 N/A
47 RME09 (BN-YE) 18 N/A
48 VME09 (BN-GN) 18 N/A
49 VDB06 (GY-OG) 22 N/A
50 * * N/A
51 VDB07 (VT-OG) 22 N/A
52 * * N/A
53 * * N/A
54 * * N/A
55 * * N/A
56 * * N/A
57 * * N/A
58 * * N/A
