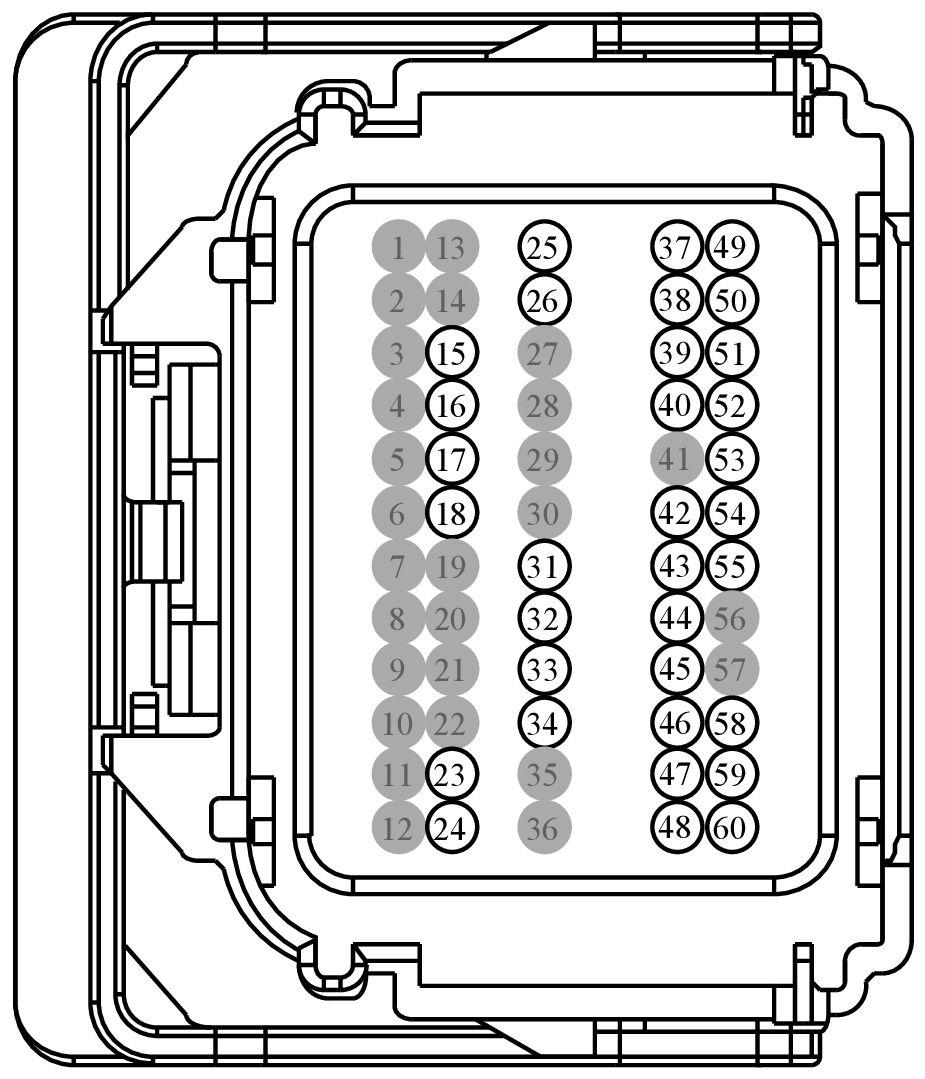

Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C310B	RESTRAINTS CONTROL MODULE (RCM)	BK	14014	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	RR147 (YE-VT)	20	CTRL MOD. - STEERING COLUMN DEPLOY	N/A
16	CR147 (GN-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER ROW 3 PASSENGER SIDE OUTBOARD	N/A
17	CR111 (BN-WH)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD	N/A
18	RR111 (YE-VT)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	VR215 (YE-VT)	20	SENSOR - SEAT TRACK POSITION DRIVER	N/A
24	CR234 (BU)	20	SWITCH - PASSENGER AIRBAG DEACTIVATION # AIRBAG ON (A)	N/A
25	CR109 (BN-BU)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD	N/A
26	RR109 (BU-GN)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED ROW 2 PASSENGER SIDE OUTBOARD	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	RR152 (YE-VT)	20	CTRL MOD. - STEERING COLUMN DEPLOY	N/A
31	RR132 (BU-WH)	20	CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE -	N/A
32	VR218 (YE-OG)	20	SENSOR - SIDE IMPACT FRONT PASSENGER SIDE	N/A
32	CR152 (GY-YE)	20	CTRL MOD. - VEHICLE 2	N/A
33	CR153 (GN-WH)	20	CTRL MOD. - VEHICLE 2	N/A
33	VR217 (GY-YE)	20	SENSOR - SIDE IMPACT FRONT DRIVER SIDE	N/A
34	RR131 (VT-GY)	20	CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE -	N/A
34	RR153 (GY-BU)	20	CTRL MOD. - STEERING COLUMN DEPLOY	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	CR106 (VT-GY)	22	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE OUTBOARD	N/A
38	RR106 (YE-OG)	22	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE OUTBOARD	N/A
39	RR105 (GY-YE)	22	CTRL MOD. - AIR BAG FRONT PASSENGER 2	N/A
40	CR105 (GN-BU)	22	CTRL MOD. - AIR BAG FRONT PASSENGER 2	N/A
41	*	*	Not Used	N/A
42	CR115 (BN)	22	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS	N/A
43	RR132 (BU-WH)	20	CTRL MOD. - SENSOR IMPACT FRONT 2ND OR RIGHT	N/A
43	RR153 (GY-BU)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) -	N/A
44	CR153 (GN-WH)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) +	N/A
44	VR218 (YE-OG)	20	SENSOR - SIDE IMPACT FRONT PASSENGER SIDE	N/A
45	VR217 (GY-YE)	20	SENSOR - SIDE IMPACT FRONT DRIVER SIDE	N/A
45	CR152 (GY-YE)	20	CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE +	N/A
46	RR152 (YE-VT)	20	CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE -	N/A
46	RR131 (VT-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 2ND OR RIGHT	N/A
47	VDB05 (WH)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
48	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
49	CR122 (WH-OG)	20	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS	N/A
50	RR122 (BN)	20	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE 2	N/A
51	RR120 (BN-GN)	20	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE 2	N/A
52	CR120 (BU-OG)	20	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS	N/A
53	RR155 (GY)	20	CTRL MOD. - STEERING COLUMN DEPLOY	N/A
54	CR201 (GN-BU)	22	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE	N/A
55	CR203 (GY-VT)	22	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	CR228 (BN-VT)	22	SENSOR - SEAT OCCUPANT (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD	N/A
59	VCA24 (GN-OG)	22	CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS LOW	N/A
60	VCA23 (BU-WH)	22	SOUNDER - BATTERY BACKUP	N/A
