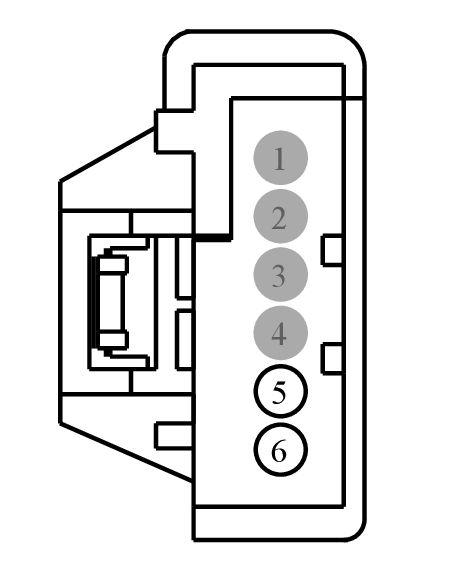

Connector End View (C282) - AIR INLET DOOR ACTUATOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C282	AIR INLET DOOR ACTUATOR	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-RSA	FU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CH207 (BU-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)	RHD	96AG-14474-RSA
5	CH208 (GN-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)	LHD	96AG-14474-RSA
6	CH207 (BU-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)	LHD	96AG-14474-RSA
6	CH208 (GN-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)	RHD	96AG-14474-RSA

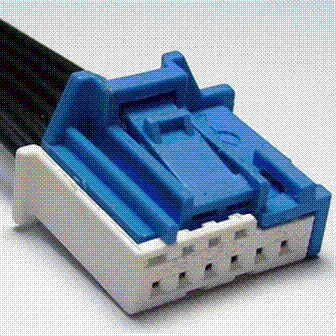

Available Pigtail Kits

Pigtail Kit Part Number WPT-1312

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-BBA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

6

Vehicle Uses:

• Motor - Heater/AC Inlet Door
