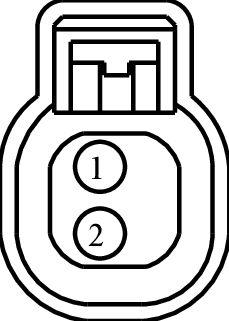

Connector End View (C268) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C268	INLINE	none	14B32414401	See Below

MALE

Harness

14B324

FEMALE

Harness

14401

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBP85 (YE)	22	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBP85 (YE)	22	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1259

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-RZB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Rear Park
• Lamp - Rear Turn
• Switch - Tonneau Cover (Pinch Strip)

Pigtail Kit Part Number WPT-966

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CNB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Actuator - Liftgate Glass
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Module - Warning Chime/ Beltminder
• Sensor - Brake Pedal Position
• Speaker - Door (front)
• Speaker - Door (rear)
• Speaker - Front
• Speaker - Rear
• Speaker - Subwoofer
• Switch - Brake Deactivation
• Switch - Stop Lamp
