Connector End View (C260) - Inline
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C260 | Inline | 353900-4353900-4 | Not Available | |||||

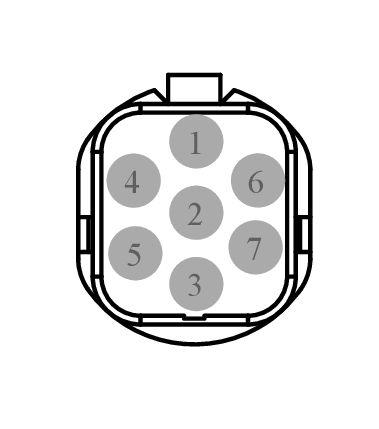

MALE
Harness
353900-4

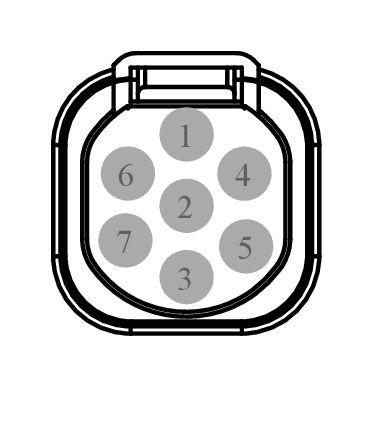

FEMALE
Harness
353900-4
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * (RD) | * | 353900-4 | N/A |
| 1 | * (VT) | * | 353900-4 | N/A |
| 2 | * (BK) | * | 353900-4 | N/A |
| 2 | * (GN) | * | 353900-4 | N/A |
| 3 | * (BK) | * | 353900-4 | N/A |
| 3 | * (OG) | * | 353900-4 | N/A |
| 4 | * (GY) | * | 353900-4 | N/A |
| 4 | * (LB) | * | 353900-4 | N/A |
| 5 | * (BN) | * | 353900-4 | N/A |
| 5 | * (YE) | * | 353900-4 | N/A |
| 6 | * (GY) | * | 353900-4 | N/A |
| 6 | * (VT) | * | 353900-4 | N/A |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
