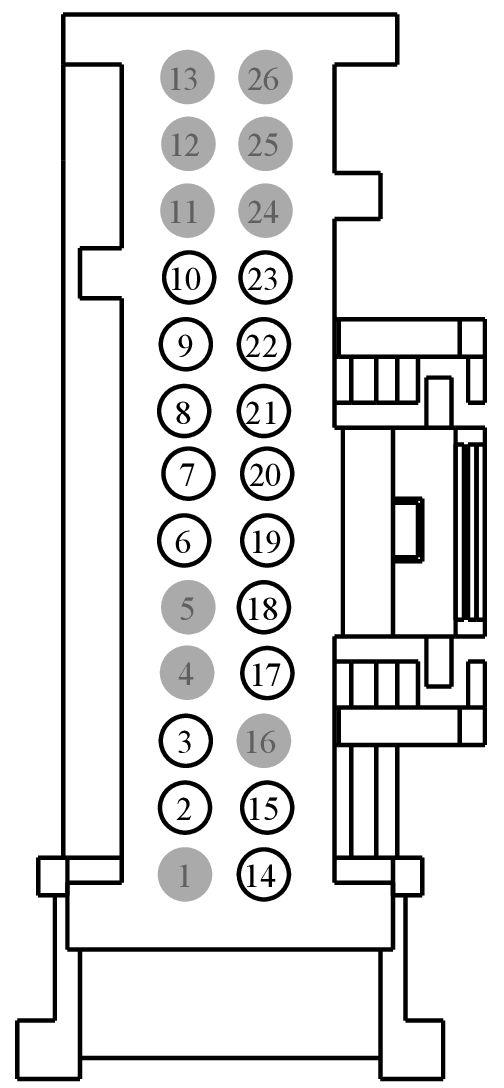

Connector End View (C228B) - ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C228B	ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) MODULE	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	RH103 (GY)	22	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS)	N/A
3	VH413 (WH-BU)	22	SENSOR - DISCHARGE TEMP. # RIGHT 2ND	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	GD133 (BK)	22	GROUND - PILLAR A LEFT	N/A
7	VH412 (YE-GY)	22	SENSOR - DISCHARGE TEMP. # RIGHT 2ND	N/A
8	VH411 (VT-GN)	22	SENSOR - DISCHARGE TEMP. # RIGHT	N/A
9	VH410 (GY-BU)	22	SENSOR - DISCHARGE TEMP. # LEFT 2ND	N/A
10	VH409 (WH)	22	SENSOR - DISCHARGE TEMP. # LEFT	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	SBP27 (BU-RD)	20	FUSE - 27 OR CIRCUIT BREAKER	N/A
15	VH101 (WH-VT)	20	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL	N/A
16	*	*	Not Used	N/A
17	RH105 (GN)	22	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS)	N/A
18	VDB06 (GY-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
19	VDB07 (VT-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
20	RH104 (BU-BN)	22	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS)	N/A
21	VH414 (GN-BU)	22	SENSOR - DISCHARGE TEMP. # RIGHT 2ND	N/A
22	VH416 (VT-GY)	22	SENSOR - DISCHARGE TEMP. # RIGHT 2ND	N/A
23	VH417 (YE-OG)	22	SENSOR - DISCHARGE TEMP. # RIGHT 2ND	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
