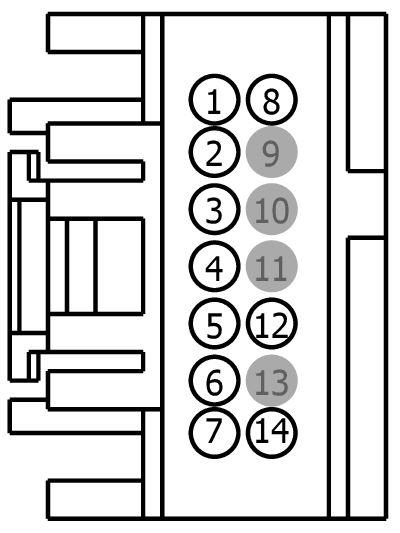

Connector End View (C226A) - STEERING ANGLE SENSOR MODULE (SASM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C226A	STEERING ANGLE SENSOR MODULE (SASM)	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP07 (WH-RD)	22	FUSE - 7 OR CIRCUIT BREAKER	N/A
2	VMC34 (WH)	26	CTRL MOD. - STEERING WHEEL MODULE LIN BUS	N/A
3	CRW10 (BU-GN)	26	CTRL MOD. - FRONT WIPER	N/A
4	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
5	VDB05 (WH)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
6	VMC29 (YE)	22	SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE)	N/A
7	CMC29 (GN-VT)	22	SWITCH - SERVICE INTERVAL RESET	N/A
8	RMC27 (WH-BN)	22	CTRL MOD. - TURN LAMP RIGHT MIRROR	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
13	*	*	Not Used	N/A
14	GD138 (BK-WH)	22	GROUND - PILLAR A RIGHT	N/A

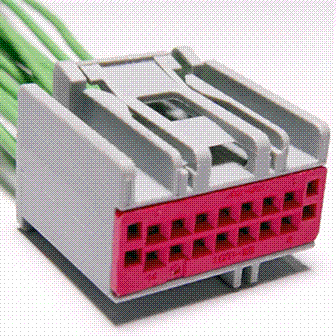

Available Pigtail Kits

Pigtail Kit Part Number WPT-1583

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JEC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Pigtail Kit Part Number WPT-974

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JEB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:
