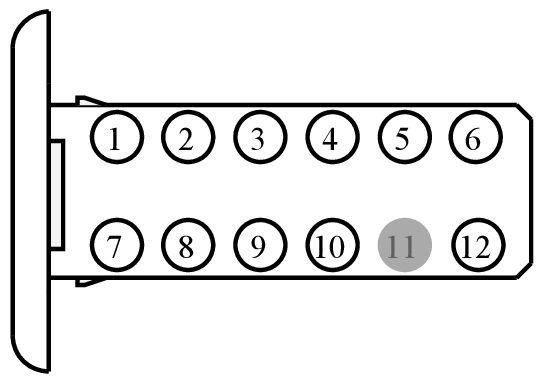

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C220	INSTRUMENT PANEL CLUSTER (IPC)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VDB07 (VT-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
2	VDB06 (GY-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
3	SBP08 (VT-RD)	22	FUSE - 8 OR CIRCUIT BREAKER	N/A
4	VDB14 (VT-GY)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
5	VDB13 (BU-GY)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
6	RMC27 (WH-BN)	22	CTRL MOD. - TURN LAMP RIGHT MIRROR	N/A
7	VMC29 (YE)	22	SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE)	N/A
8	CMC29 (GN-VT)	22	SWITCH - SERVICE INTERVAL RESET	N/A
9	CDC41 (WH-BN)	20	SWITCH - STARTER	N/A
10	GD138 (BK)	22	GROUND - PILLAR A RIGHT	N/A
11	*	*	Not Used	N/A
12	VE213 (BU-WH)	20	CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1278

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ABA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

12

Vehicle Uses:

• Message Center
• Module - Driver Information
• Module - Front Interface
