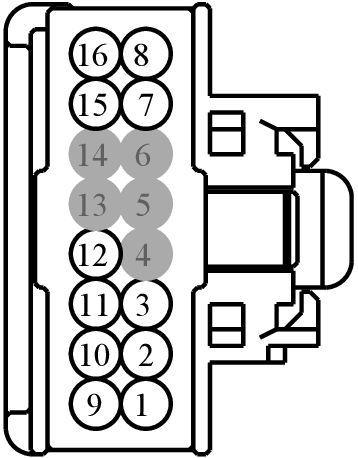

Connector End View (C218B) - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218B	CLOCKSPRING	GN	14A664	14A664	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (BN)	*	TRIP SIGNAL	N/A
2	* (VT)	*	DISPLAY/TRIP GROUND	N/A
3	* (GY)	*	CTRL MOD. - INSTRUMENT CLUSTER # SWITCH INFORMATION / MESSAGE CENTER SELECT	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	* (BK)	*	SWITCH - IP/SWITCH ILLUMINATION	N/A
8	* (GY)	*	CRUISE SIGNAL 1	N/A
9	* (VT)	*	CTRL MOD. - STEERING WHEEL # HORN	N/A
10	* (GN)	*	GROUND - PILLAR A LEFT	N/A
11	* (GY)	*	SWITCH - REDUNDANT AUDIO	N/A
12	* (VT)	*	CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	* (VT)	*	CRUISE GROUND	N/A
16	* (BN)	*	CRUISE SIGNAL 2	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1152

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AJD

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Mirror - Sideview
• Mirror - Vanity
• Overhead Console -Inline (Female)
• Switch - Multifunction
