Connector End View (C211) - INLINE

Inline: Description Color Harness Base Part # Service Pigtail
C211 INLINE BK 14K73314014 Not Available

MALE

Harness

14K733

FEMALE

Harness

14014

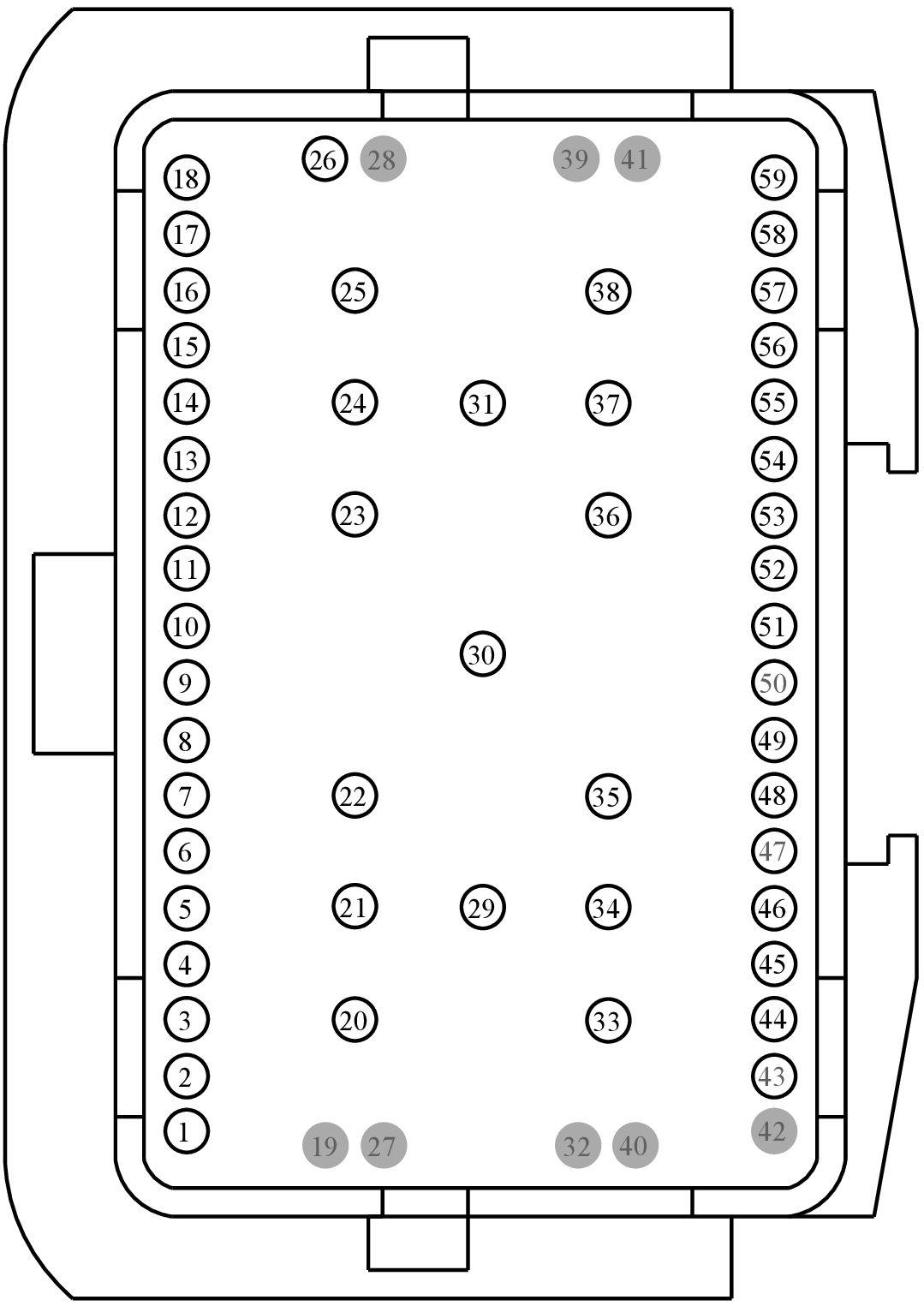

GFDWR18992Courtesy of FORD MOTOR COMPANY

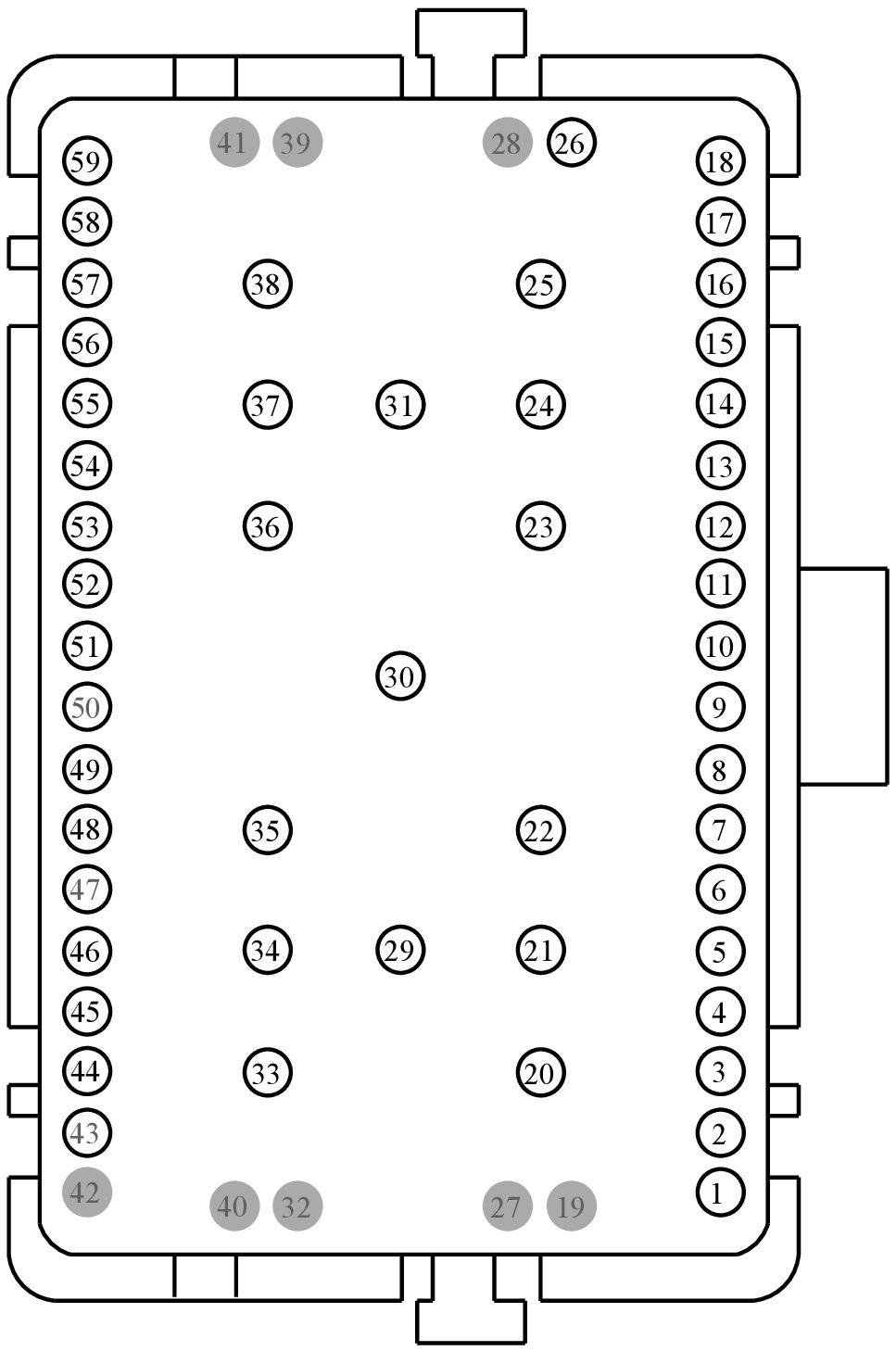

GFDWR18993Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 RMP06 (YE-OG) 22 N/A
2 VE208 (WH) 18 N/A
3 CPM00 (BN-GN) 22 N/A
4 LE230 (BN-BU) 20 N/A
5 CPM00 (BN-GN) 20 N/A
6 SBB34 (YE-RD) 20 N/A
7 RH107 (BK-YE) 20 N/A
8 VE922 (VT-GN) 20 N/A
9 VCA04 (BU-OG) 20 N/A
10 RCA18 (BN-GN) 20 N/A
11 VCA06 (WH-OG) 20 N/A
12 RCA20 (BN) 20 N/A
13 VCA24 (GN-OG) 20 N/A
14 VCA23 (BU-WH) 20 N/A
15 VDB05 (WH) 20 N/A
16 VDB04 (WH-BU) 20 N/A
17 VDB07 (VT-OG) 22 N/A
18 VDB06 (GY-OG) 22 N/A
19 * * N/A
20 CRD06 (BN-YE) 12 N/A
21 CPW00 (BN-YE) 12 N/A
22 SBR06 (BN-RD) 12 N/A
23 VE213 (BU-WH) 20 N/A
24 CYD05 (YE) 12 N/A
25 CBB43 (GY) 18 N/A
26 CYD05 (YE) 20 N/A
27 * * N/A
28 * * N/A
29 SBB07 (WH-RD) 10 N/A
30 SBP46 (BN-RD) 10 N/A
31 SBB19 (BU-RD) 10 N/A
31 SBB48 (RD) 10 1.5L 14K733 N/A
32 * * N/A
33 CBR11 (BU-RD) 20 N/A
34 SBB27 (BU-RD) 14 N/A
35 CRW05 (BU) 16 N/A
36 CBB45 (YE) 16 N/A
37 CPW35 (GN) 12 N/A
38 VE225 (YE-BU) 14 N/A
38 VE741 (GN-WH) 14 N/A
39 * * N/A
40 * * N/A
41 * * N/A
42 * * N/A
43 * * N/A
44 SRH01 (YE-RD) 20 N/A
45 CRT02 (GY-VT) 20 N/A
46 SRH01 (YE-RD) 20 N/A
47 * * N/A
48 VE518 (BN-WH) 20 N/A
49 RE230 (WH-VT) 20 N/A
50 * * N/A
51 CRW02 (GY-BU) 20 N/A
52 CE112 (GN-VT) 20 N/A
52 VYD01 (GY-VT) 20 N/A
53 VMP13 (BU-OG) 22 N/A
54 LMP06 (VT-GY) 22 N/A
55 VMP12 (BU-GY) 22 N/A
56 VMP10 (WH-BU) 22 N/A
57 VMP11 (BU-GN) 22 N/A
58 CRD02 (BN-BU) 20 N/A
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 RMP06 (YE-OG) 22 N/A
2 VE208 (WH) 18 N/A
3 CPM00 (BN-GN) 22 N/A
4 LE230 (BN-BU) 20 N/A
5 CPM00 (BN-GN) 20 N/A
6 SBB35 (BU-RD) 20 N/A
7 RH107 (BK-YE) 20 N/A
8 VE922 (VT-GN) 20 N/A
9 VCA04 (BU-OG) 20 N/A
10 RCA18 (BN-GN) 20 N/A
11 VCA06 (WH-OG) 20 N/A
12 RCA20 (BN) 20 N/A
13 VCA24 (GN-OG) 22 N/A
14 VCA23 (BU-WH) 22 N/A
15 VDB05 (WH) 22 N/A
16 VDB04 (WH-BU) 22 N/A
17 VDB07 (VT-OG) 22 N/A
18 VDB06 (GY-OG) 22 N/A
19 * * N/A
20 CRD06 (BN-YE) 12 N/A
21 CPW00 (BN-YE) 12 N/A
21 SBR02 (YE-RD) 12 N/A
22 SBR06 (BN-RD) 12 N/A
23 VE213 (BU-WH) 20 N/A
24 CYD05 (YE) 12 N/A
25 CBB43 (GY) 18 N/A
26 SMP22 (YE-VT) 20 N/A
27 * * N/A
28 * * N/A
29 SBB07 (BK) 10 N/A
29 SBB07 (WH-RD) 10 N/A
30 SBP46 (BN-RD) 10 N/A
31 SYV01 (RD) 10 N/A
32 * * N/A
33 CBB37 (WH) 20 N/A
33 CBR11 (BU-RD) 20 N/A
33 CBR11 (BU-RD) 20 N/A
33 CBR11 (BU-RD) 22 N/A
33 SMP22 (YE-VT) 20 14014-FOE N/A
33 SMP22 (YE-VT) 22 N/A
34 SBB27 (BU-RD) 14 N/A
35 CRW05 (BU) 16 N/A
36 CRW33 (VT-WH) 16 N/A
37 CPW35 (GN) 12 N/A
37 SBR01 (RD) 12 N/A
38 VE225 (YE-BU) 14 N/A
39 * * N/A
40 * * N/A
41 * * N/A
42 * * N/A
43 * * N/A
44 SRH01 (YE-RD) 20 N/A
45 CRT02 (GY-VT) 20 N/A
46 SRH01 (YE-RD) 20 N/A
47 * * N/A
48 VE518 (BN-WH) 20 N/A
49 RE230 (WH-VT) 20 N/A
50 * * N/A
51 CRW02 (GY-BU) 20 N/A
52 CE112 (GN-VT) 20 N/A
52 VYD01 (GY-VT) 20 N/A
53 VMP13 (BU-OG) 26 N/A
54 LMP06 (VT-GY) 26 N/A
55 VMP12 (BU-GY) 22 N/A
56 VMP10 (WH-BU) 22 N/A
57 VMP11 (BU-GN) 26 N/A
58 CRD02 (BN-BU) 20 N/A
