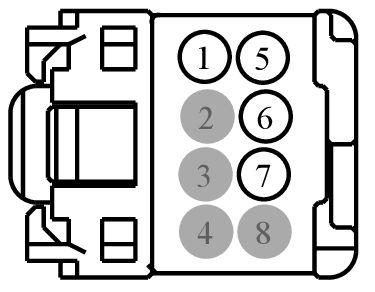

Connector End View (C205) - HEADLAMP SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C205 | HEADLAMP SWITCH | BK | 14401 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBB33 (RD) | 22 | FUSE - 33 OR CIRCUIT BREAKER | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | VLF25 (GN-VT) | 22 | SENSOR - HEADLAMP LEVELING REAR | N/A | ||||
| 6 | VLF22 (VT-GN) | 22 | SENSOR - HEADLAMP LEVELING REAR | N/A | ||||
| 7 | GD133 (BK) | 22 | GROUND - PILLAR A LEFT | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-995
Service Part Number:
3U2Z-14S411-BGB
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Lamp - Dimmer Switch
- Switch - 4x4 Control
- Switch - Adjustable Pedal
- Switch - Center Stack (Multipurpose)
- Switch - Dimmer
- Switch - Hazard Warning
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Multifunction (Wiper)
- Switch - Seat (3rd Row)
- Switch - Third Row Power Folding Seat
- Switch - Traction Control
