Connector End View (C175E) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175E POWERTRAIN CONTROL MODULE (PCM) BK 12C508 12A650 Not Available

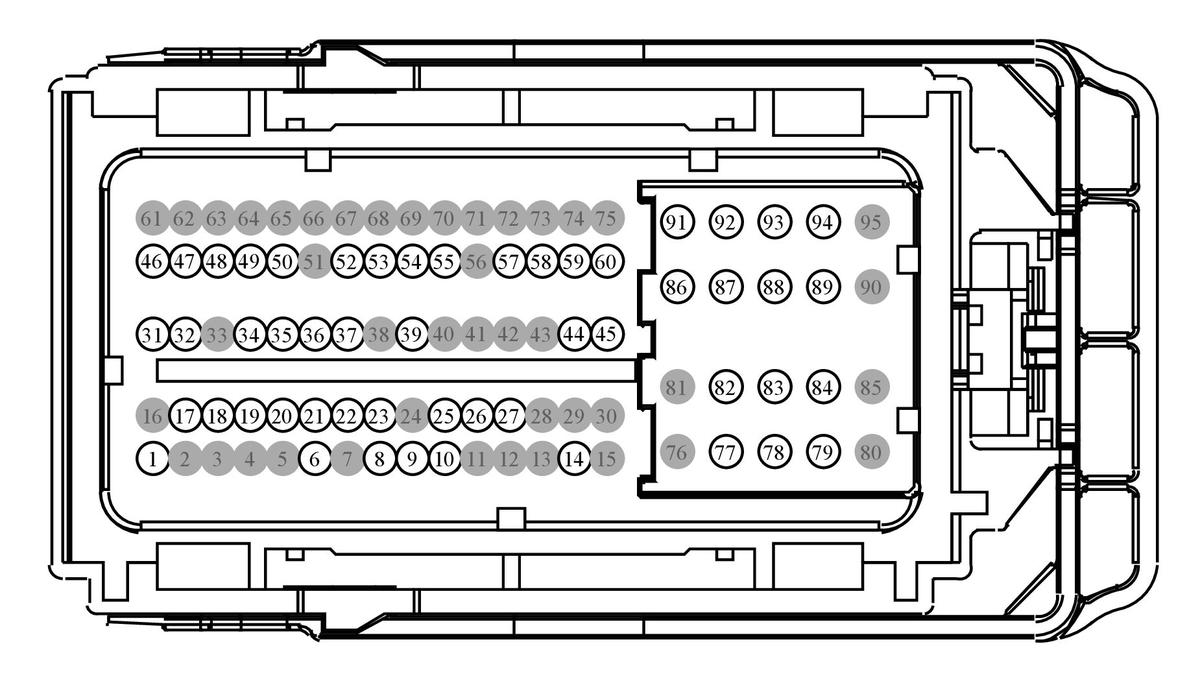

GFDWR18978Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) N/A
7 * * Not Used N/A
8 LE134 (YE) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) N/A
9 VE819 (GN-VT) 20 SENSOR- THROTTLE POSITION (TACM+) N/A
10 VE818 (BN) 20 SENSOR - POWERTRAIN # THROTTLE POSITION 2 (TP2) N/A
11 * * Not Used N/A
12 * * Not Used N/A
13 * * Not Used N/A
14 CE113 (WH-BN) 18 CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) N/A
15 * * Not Used N/A
16 * * Not Used N/A
17 LE111 (VT-GN) 20 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) N/A
18 CBK01 (BU) 18 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) N/A
19 CET34 (BN-GN) 20 SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS) N/A
20 VET32 (VT) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) N/A
21 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # (UO2SPC11) N/A
22 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) N/A
23 RE134 (BU-OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) N/A
24 * * Not Used N/A
25 CMC24 (GY) 18 SWITCH - OIL PRESSURE N/A
26 VET26 (BN-GN) 20 SENSOR - OUTPUT SHAFT SPEED (OSS) N/A
27 VET33 (WH-OG) 20 SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 CE104 (GN) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC) N/A
32 VE803 (BU-GN) 20 SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + N/A
33 * * Not Used N/A
34 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREV) (VREF1) N/A
35 RE405 (GN-WH) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) N/A
36 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) N/A
37 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) N/A
38 * * Not Used N/A
39 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 DE135 (WH) 20 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) D N/A
45 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 (CMP11) N/A
46 CE103 (BU-BN) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC) N/A
47 CE102 (YE-BU) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC) (-) N/A
48 CE101 (WH-VT) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC) (+) N/A
49 CE426 (BU-GN) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) N/A
50 CE412 (YE-VT) 20 CTRL MOD. - POWERTRAIN # THROTTLE POSITION 1 (TP1) N/A
51 * * Not Used N/A
52 CE205 (GN-BU) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + N/A
52 RE205 (YE-BU) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + LPG N/A
53 RE207 (GN-VT) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + LPG N/A
53 CE207 (VT-GY) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + N/A
54 CE208 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + N/A
54 RE208 (BU) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + LPG N/A
55 RE206 (BU-OG) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + LPG N/A
55 CE206 (GY-YE) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + N/A
56 * * Not Used N/A
57 RE323 (WH-BN) 20 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1-) N/A
58 VE801 (VT-OG) 20 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) N/A
59 RE135 (GN-BN) 18 CTRL MOD. - POWERTRAIN # (SIGRTN) N/A
60 VE711 (YE-VT) 18 SENSOR - CRANKSHAFT POSITION (CKP) N/A
61 * * Not Used N/A
62 * * Not Used N/A
63 * * Not Used N/A
64 * * Not Used N/A
65 * * Not Used N/A
66 * * Not Used N/A
67 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 * * Not Used N/A
73 * * Not Used N/A
74 * * Not Used N/A
75 * * Not Used N/A
76 * * Not Used N/A
77 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] N/A
78 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] N/A
79 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP1A) N/A
80 * * Not Used N/A
81 * * Not Used N/A
82 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] N/A
83 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] N/A
84 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B) N/A
85 * * Not Used N/A
86 CET18 (GY-YE) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1) N/A
87 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] N/A
88 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] N/A
89 CE306 (GN-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP4C) N/A
90 * * Not Used N/A
91 CET25 (BU-GN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) N/A
92 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) N/A
93 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) N/A
94 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP2D) N/A
95 * * Not Used N/A
