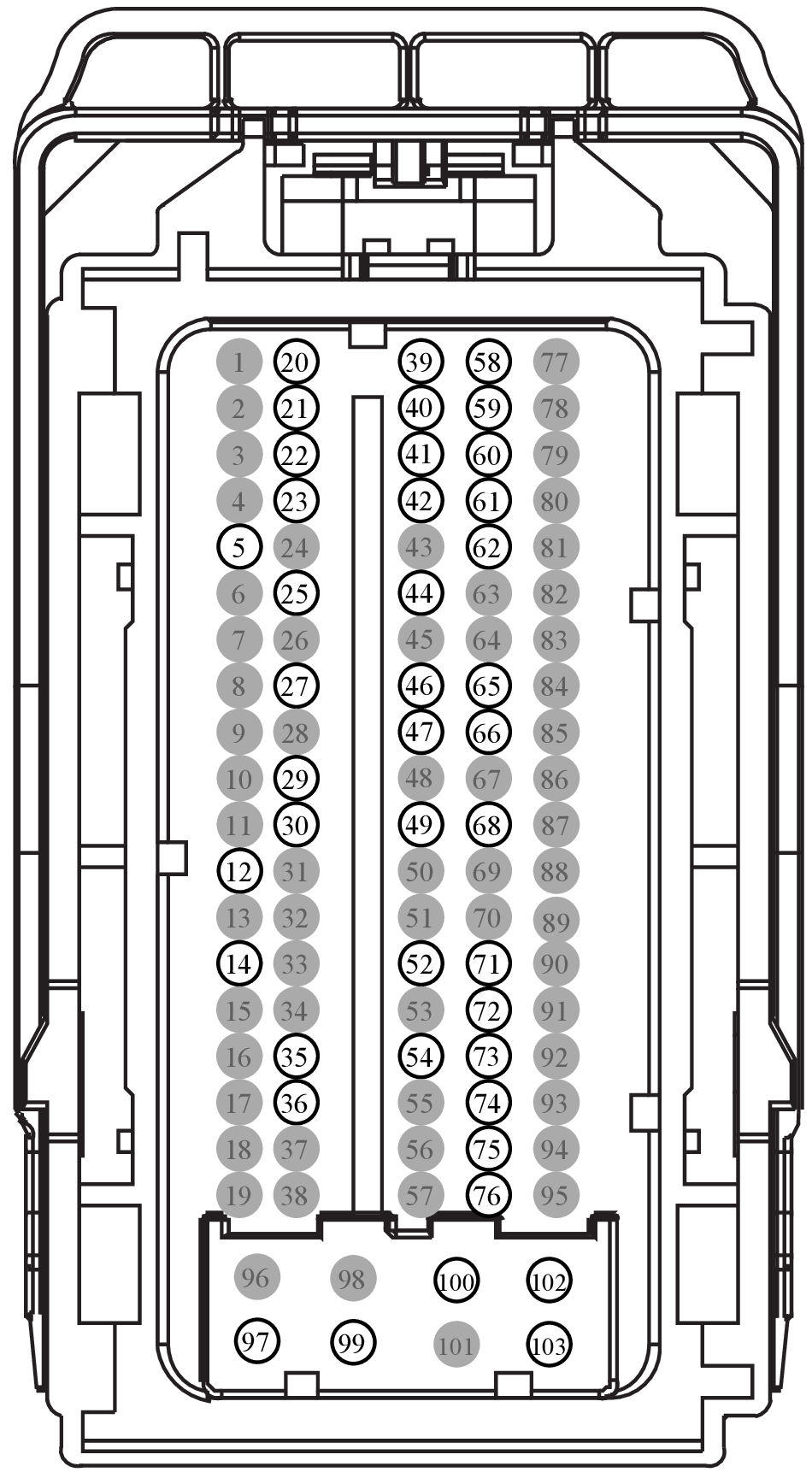

Connector End View (C175B) - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C175B	POWERTRAIN CONTROL MODULE (PCM)	BK	12C508	12A650	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	GD120 (BK/GN)	18	GROUND	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	CES09 (VT-OG)	20	SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +	N/A
13	*	*	Not Used	N/A
14	CCB08 (VT/WH)	20	CTRL MOD. - ELEC.PARK BRAKE # APPLY	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	CE302 (YE/BU)	20	CTRL MOD. - POWERTRAIN # IDLE AIR CONTROL VALVE (IAC)	N/A
21	CE436 (VT-OG)	20	CTRL MOD. -WAKE UP PCM	N/A
22	CET42 (GN-VT)	18	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	N/A
23	CET43 (GY)	18	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	N/A
24	*	*	Not Used	N/A
25	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	N/A
26	*	*	Not Used	N/A
27	CE515 (YE/GY)	18	DRIVER - FUEL PUMP POWER (FPPWR)	N/A
28	*	*	Not Used	N/A
29	LE230 (BN-BU)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)	N/A
30	RE407 (YE-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	RE137 (YE-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2)	N/A
36	LE137 (BU-GY)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2)	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	CE114 (GN-BU)	20	CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)	N/A
40	LE136 (GN-OG)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1)	N/A
41	CDC34 (WH-OG)	20	SWITCH - IGNITION # RUN; START	N/A
42	CDC35 (BU-WH)	20	SWITCH - IGNITION # START	N/A
43	*	*	Not Used	N/A
44	VH433 (VT-OG)	20	CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V)	N/A
45	*	*	Not Used	N/A
46	VE922 (VT/GN)	20	SENSOR - WATER IN FUEL	N/A
47	VE750 (GN-BU)	20	SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)	N/A
48	*	*	Not Used	N/A
49	CE261 (GY/OG)	20	CTRL MOD. -POWERTRAIN # HOLD PCM RELAY (PCM)	N/A
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	LE424 (YE-GN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF)	N/A
53	*	*	Not Used	N/A
54	RE320 (BU)	20	CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN)	N/A
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	CH302 (WH-BN)	20	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)	N/A
59	RE136 (VT-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1)	N/A
60	VE702 (BU-WH)	20	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)	N/A
61	VE701 (YE-OG)	20	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)	N/A
62	CDC12 (YE)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)	N/A
63	*	*	Not Used	N/A
64	*	*	Not Used	N/A
65	VE225 (YE-OG)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)	N/A
66	VE203 (VT)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)	N/A
67	*	*	Not Used	N/A
68	CDC54 (WH-GN)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)	N/A
69	*	*	Not Used	N/A
70	*	*	Not Used	N/A
71	RE242 (GN)	20	CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE	N/A
72	VE731 (YE/GN)	20	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	N/A
73	VE807 (YE-VT)	20	SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF)	N/A
74	VDN06 (WH-GN)	20	CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1	N/A
75	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
76	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
77	*	*	Not Used	N/A
78	*	*	Not Used	N/A
79	*	*	Not Used	N/A
80	*	*	Not Used	N/A
81	*	*	Not Used	N/A
82	*	*	Not Used	N/A
83	*	*	Not Used	N/A
84	*	*	Not Used	N/A
85	*	*	Not Used	N/A
86	*	*	Not Used	N/A
87	*	*	Not Used	N/A
88	*	*	Not Used	N/A
89	*	*	Not Used	N/A
90	*	*	Not Used	N/A
91	*	*	Not Used	N/A
92	*	*	Not Used	N/A
93	*	*	Not Used	N/A
94	*	*	Not Used	N/A
95	*	*	Not Used	N/A
96	*	*	Not Used	N/A
97	CBB08 (GY-YE)	16	FUSE OR CIRCUIT BREAKER	N/A
98	*	*	Not Used	N/A
99	CBB08 (GY-YE)	16	FUSE OR CIRCUIT BREAKER	N/A
100	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	N/A
101	*	*	Not Used	N/A
102	GD120 (BK-GN)	16	GROUND - FENDER FRONT LEFT	N/A
103	GD120 (BK-GN)	16	GROUND - FENDER FRONT LEFT	N/A
