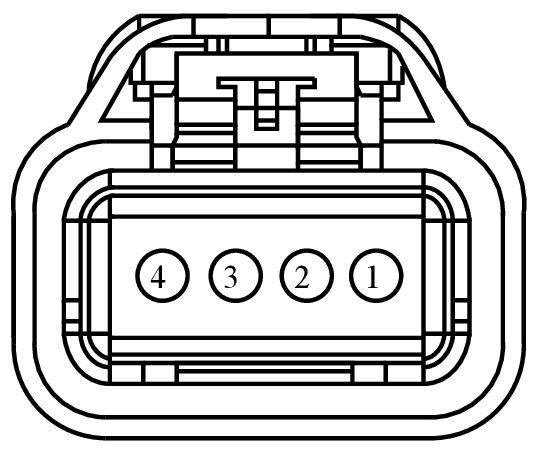

Connector End View (C173) - FUEL RAIL PRESSURE/TEMPERATURE SENSOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C173 | FUEL RAIL PRESSURE/TEMPERATURE SENSOR | BK | 12A690 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE761 (BN-BU) | 20 | SENSOR - FUEL LOW PRESSURE (FLPS) | N/A | ||||
| 2 | VE728 (GN) | 20 | SENSOR - FUEL RAIL TEMPERATURE (FRT) | N/A | ||||
| 3 | LE437 (YE) | 20 | CTRL MOD. - POWERTRAIN # TURBO POSITION SENSOR + | N/A | ||||
| 4 | RE232 (VT-WH) | 20 | CTRL MOD. - POWERTRAIN # FUEL TEMP. SENSOR | N/A | ||||
