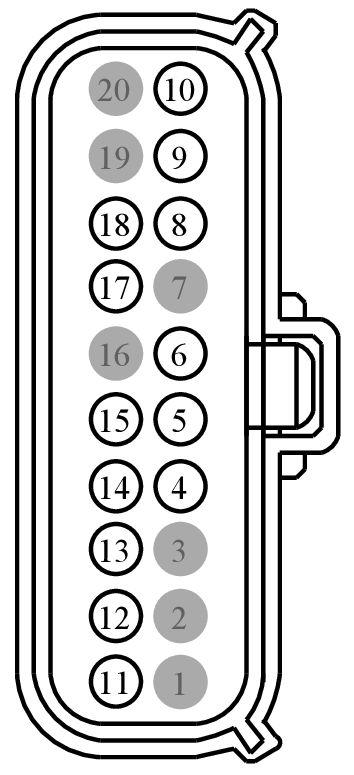

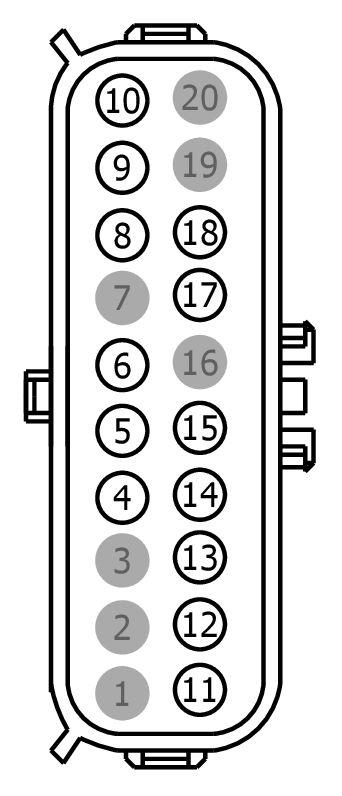

Connector End View (C134) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C134	INLINE	14K73312A690			See Below

MALE

Harness

14K733

FEMALE

Harness

12A690

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	- ()	*	N/A
2	- ()	*	N/A
3	- ()	*	N/A
4	CET62 (WH-GN)	20	N/A
5	CET61 (BN-VT)	20	N/A
6	VE213 (BU-WH)	20	N/A
7	- ()	*	N/A
8	SBB26 (YE-RD)	18	N/A
9	- ()	*	N/A
10	LE456 (YE-BU)	20	N/A
11	VE757 (WH)	20	N/A
12	RE456 (BU-OG)	20	N/A
13	VCA38 (BN-VT)	20	N/A
14	RCA37 (WH-BU)	20	N/A
15	LCA37 (YE-OG)	20	N/A
16	- ()	*	N/A
17	VE518 (BN-WH)	20	N/A
18	VE208 (WH)	18	N/A
19	- ()	*	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	- ()	*	N/A
2	- ()	*	N/A
3	- ()	*	N/A
4	CET42 (GN-VT)	20	1.5L	N/A
5	CET43 (GY)	20	1.5L	N/A
6	CDC70 (BU-BN)	20	1.5L	N/A
6	VE213 (BU-WH)	20	1.6l DV6	N/A
7	- ()	*	N/A
8	CBB26 (BU-WH)	18	1.5L	N/A
9	RE904 (GN-RD)	20	1.5L	N/A
10	LE456 (VT-OG)	20	1.5L	N/A
11	VE757 (WH)	20	1.6l DV6	N/A
11	VE772 (YE-BU)	20	1.5L	N/A
12	RE456 (BU-OG)	20	1.5L/1.6l DV6	N/A
13	VCA38 (BN-VT)	20	1.5L/1.6l DV6	N/A
14	RCA37 (WH-BU)	20	1.5L/1.6l DV6	N/A
15	LCA37 (WH-OG)	20	1.5L/1.6l DV6	N/A
16	- ()	*	N/A
17	VE518 (BN-WH)	20	1.5L	N/A
18	VE225 (YE-OG)	20	1.5L	N/A
19	- ()	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1567

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-HB

Gauge:

16

Pin material:

Silver

Cavities:

20

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-889

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-GA

Gauge:

16

Pin material:

Silver

Cavities:

20

Vehicle Uses:

• Connector - Inline
• For Mating Connector Refer To WPT-890
