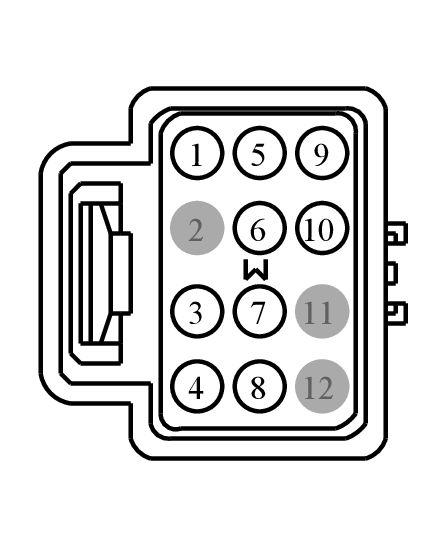

Connector End View (C133B) - LIQUEFIED PETROLEUM GAS (LPG) ASSEMBLY

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C133B	LIQUEFIED PETROLEUM GAS (LPG) ASSEMBLY	BK	12C508	3M5T-144464-UMC	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CDC34 (WH-OG)	20	SWITCH - IGNITION # RUN, START	N/A
2	- ()	*	Not Used	N/A
3	RE205 (YE-BU)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ)	N/A
4	RE206 (BU-OG)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ)	N/A
5	RE207 (GN-VT)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ)	N/A
6	RE208 (BU)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ)	N/A
7	CBK01 (BU)	18	VPWR	N/A
8	VE803 (BU/GN)	20	MAP	N/A
9	VE804 (WH/BU)	20	IAT SIG	N/A
10	VE805 (WH)	20	TCBP	N/A
11	- ()	*	Not Used	N/A
12	- ()	*	Not Used	N/A
