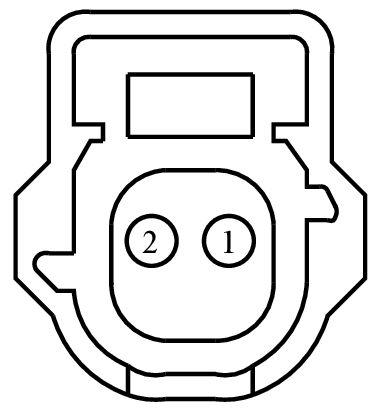

Connector End View (C132) - AMBIENT AIR TEMPERATURE SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C132	AMBIENT AIR TEMPERATURE SENSOR	BK	14K733	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VH407 (YE-GN)	20	SENSOR - AMBIENT TEMP.	N/A
2	RH107 (BK-YE)	20	CTRL MOD. - AMBIENT TEMP. SENSOR	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1548

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AGC

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Ambient Temp
• Sensor - Side Impact

Pigtail Kit Part Number WPT-1306

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AGB

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Ambient Temp
• Sensor - Side Impact
