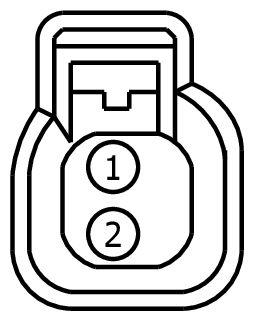

Connector End View (C131) - HORN

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C131	HORN	BK	14K733	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD131 (BK-GY)	18	GROUND - HEADLAMP PANEL RIGHT	N/A
2	CBB31 (BU-OG)	18	FUSE - 31 OR CIRCUIT BREAKER	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1051

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-ZB

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
• Horn
• Switch - Backup Lamp
• Switch - Hood Ajar
