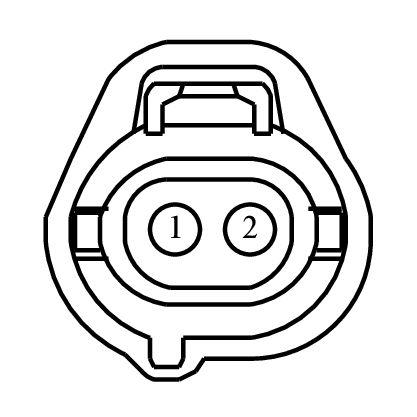

Connector End View (C130) - AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C130	AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID	BK	12A690	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
XR8T-14474-CA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB16 (VT-GY)	18	FUSE - 16 OR CIRCUIT BREAKER	XR8T-14474-CA
2	CH401 (GY)	18	RELAY - A/C CLUTCH	XR8T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-869

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-DA

Gauge:

18

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Lamp - License
