Connector End View (C123) - EVAPORATIVE EMISSION CANISTER PURGE VALVE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C123	EVAPORATIVE EMISSION CANISTER PURGE VALVE	BK	12A690	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2S6T-14474-DBA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)	1.6L GTDI	NA
1	CE113 (WH-BN)	20	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)	1.0L	2S6T-14474-DBA
2	CBB12 (GN-WH)	20	FUSE - 12 OR CIRCUIT BREAKER	1.0L	2S6T-14474-DBA
2	CBB33 (WH-BN)	18	FUSE - 33 OR CIRCUIT BREAKER	1.6L GTDI	NA

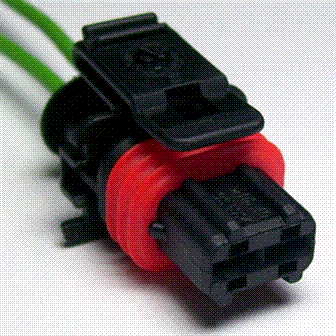

Available Pigtail Kits

Pigtail Kit Part Number WPT-1274

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BCA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Valve - Vapor Management
