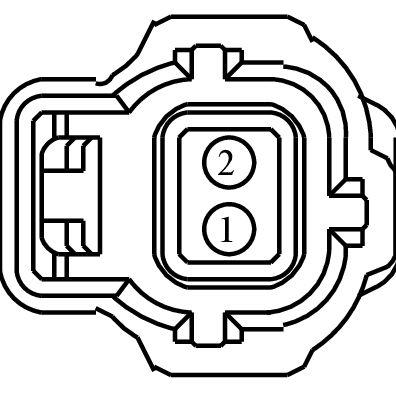

Connector End View (C107) - CYLINDER HEAD TEMPERATURE (CHT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C107	CYLINDER HEAD TEMPERATURE (CHT) SENSOR	GY	12C508	4411996	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE712 (BU-GY)	20	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	2.5L	N/A
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	2.5L	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-985

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MDB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Lamp - Running Board
• Lamp - Side Marker
• Sensor - Cylinder Head Temperature
