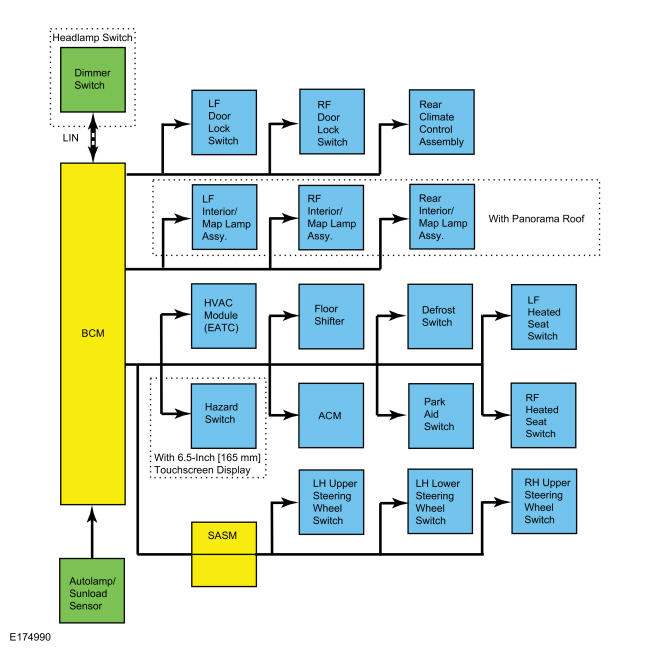

System Diagram (Non-Networked Illumination)

Non-Networked Illumination

GFD305522

Courtesy of FORD MOTOR COMPANY
