Rear Overhead Console - Vehicles With: Metal Roof Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.

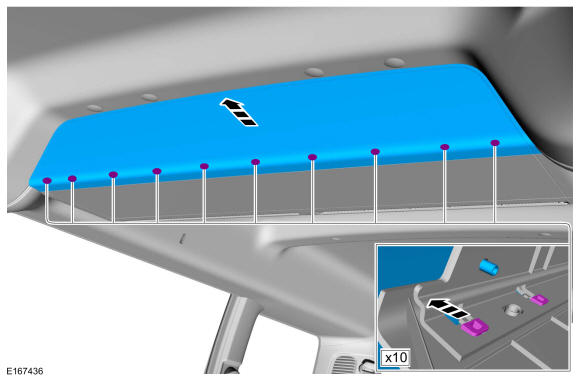

1. Release the tabs and remove the mid-vehicle overhead stowage console.

   Courtesy of FORD MOTOR COMPANY

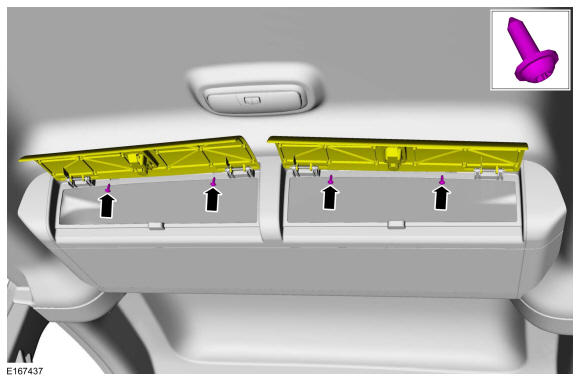

2. Open the storage compartment doors and remove the retainers.

   Courtesy of FORD MOTOR COMPANY

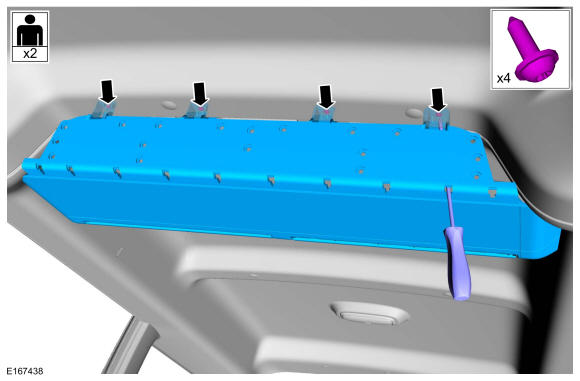

3. Remove the retainers and the storage compartment.

Courtesy of FORD MOTOR COMPANY
