Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the floor console. Refer to: Floor Console - Vehicles With: Single Passenger Seat .
  2. Remove the selector lever boot.

    • Disconnect the electrical connector.

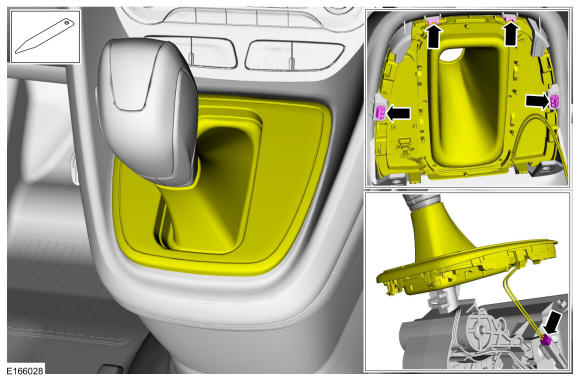

    GFD306411Courtesy of FORD MOTOR COMPANY

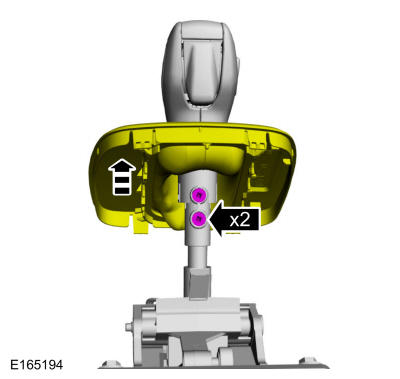

  3. Lift the selector lever bezel up and remove the retainers.
    GFD306412Courtesy of FORD MOTOR COMPANY

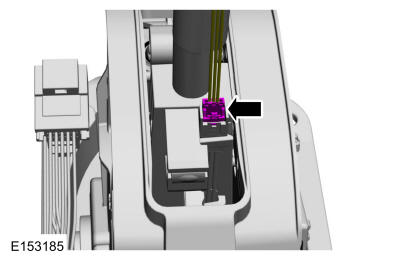

  4. Disconnect the selectshift switch electrical connector.
    GFD306413Courtesy of FORD MOTOR COMPANY

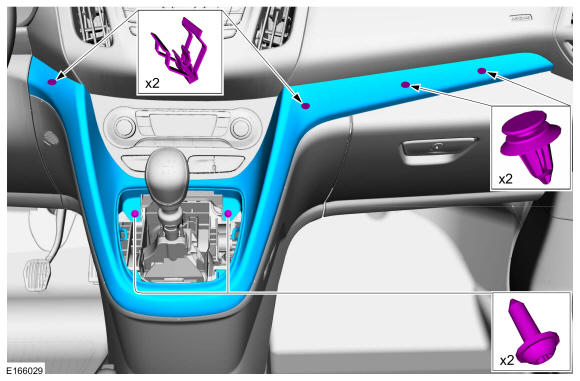

  5. Remove the screws and push pins, release the clips and remove the trim panel.
    GFD306414Courtesy of FORD MOTOR COMPANY
  6. Position aside the weather strip and remove the trim panel.
    GFD305658Courtesy of FORD MOTOR COMPANY
    1. Remove the bolt.

      Torque: 22 lb.in (2.5 Nm)

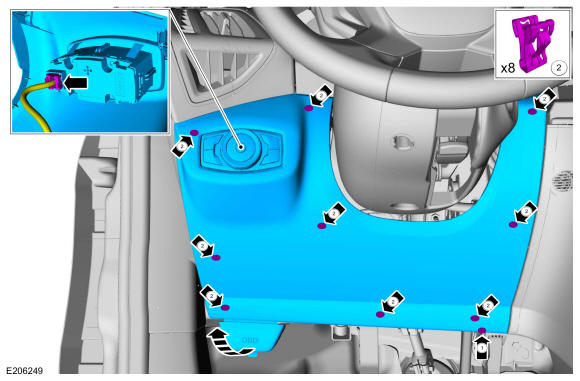

    2. Release the clips disconnect the electrical connector and remove the lower steering column trim panel.
    GFD306415Courtesy of FORD MOTOR COMPANY
  7. Remove the screws and push pins, release the clips and remove the trim panel.
    GFD306064Courtesy of FORD MOTOR COMPANY

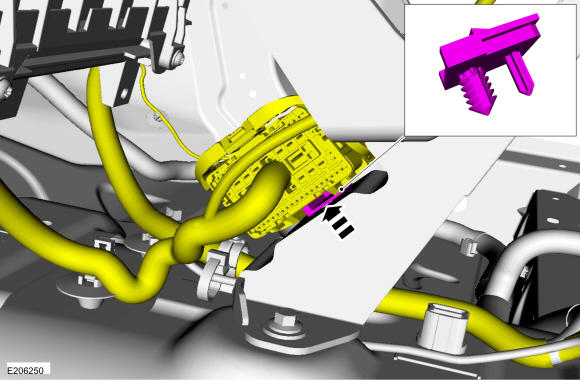

  8. Release the harness retainer and position aside the harness.
    GFD306416Courtesy of FORD MOTOR COMPANY
  9. Remove the push pins and bolts.

    Torque: 80 lb.in (9 Nm)

    GFD306390Courtesy of FORD MOTOR COMPANY
    1. Remove the selector lever nuts.

      Torque: 89 lb.in (10 Nm)

    2. Remove the selector lever bolts.

      Torque: 80 lb.in (9 Nm)

    3. Remove the selector lever cable retainer bolt.

      Torque: 62 lb.in (7 Nm)

    4. Disconnect the electrical connector and remove the selector lever assembly.
    GFD306391Courtesy of FORD MOTOR COMPANY

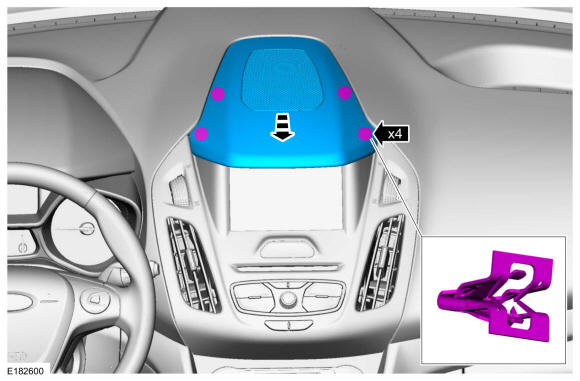

  10. Release the clips and remove the trim panel.
    GFD306417Courtesy of FORD MOTOR COMPANY

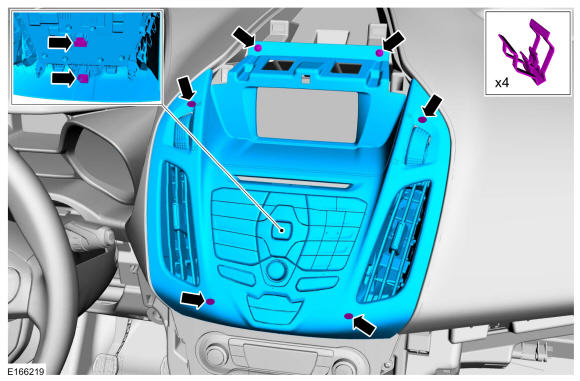

  11. Release the clips and remove the FCIM.

    • Disconnect the electrical connectors.

    GFD305641Courtesy of FORD MOTOR COMPANY
  12. NOTE: If equipped.

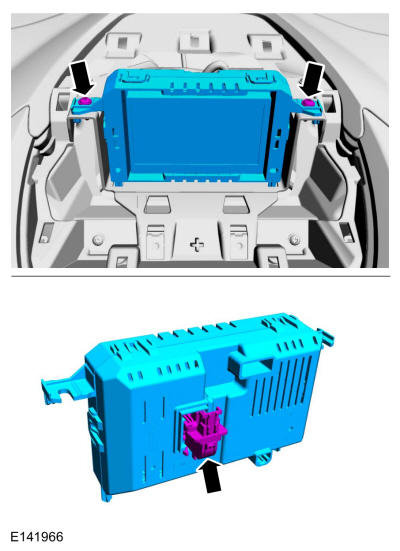

    NOTE: Non-touch screen display shown.

    Remove the bolts and the FCDIM.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD305639Courtesy of FORD MOTOR COMPANY
  13. NOTE: If equipped.
    NOTE: Touch screen display shown.

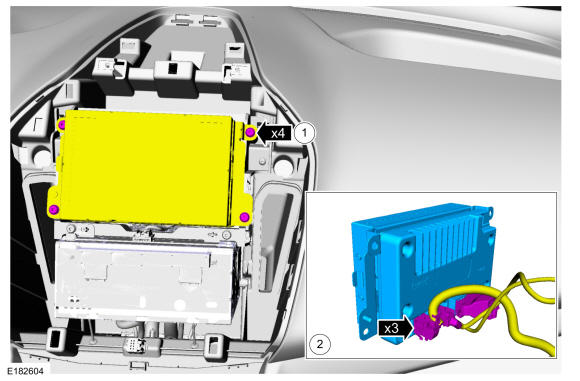

    1. Remove the bolts and the FDIM.

      Torque: 22 lb.in (2.5 Nm)

    2. Disconnect the electrical connectors.

    GFD306418Courtesy of FORD MOTOR COMPANY

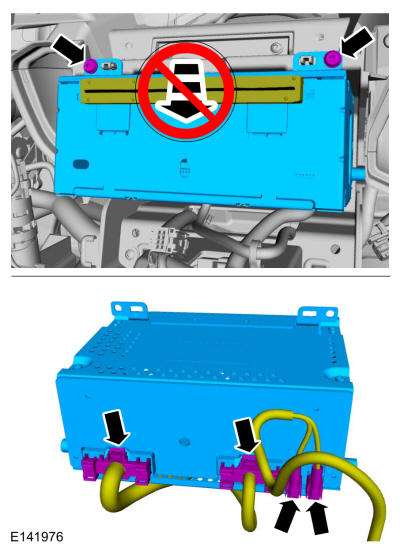

  14. Remove the bolts and the ACM.

    • Disconnect the electrical connectors.

    GFD306419Courtesy of FORD MOTOR COMPANY

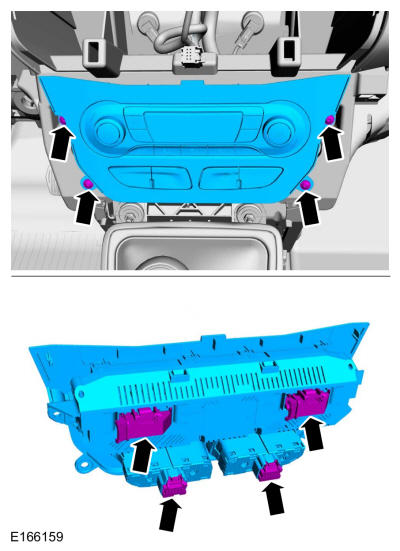

  15. Remove the screws and the climate control assembly.

    • Disconnect the electrical connectors.

    GFD306420Courtesy of FORD MOTOR COMPANY
  16. NOTE: If equipped.

    Remove the screws and the bracket.

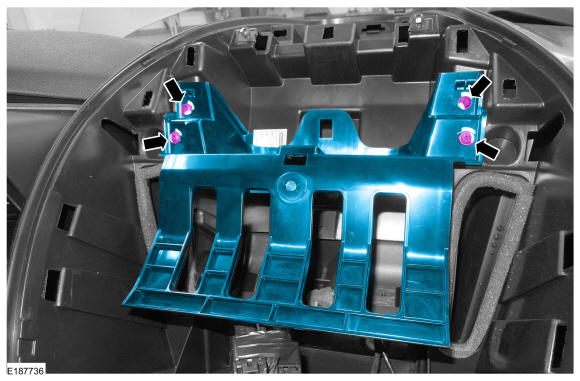

    GFD306421Courtesy of FORD MOTOR COMPANY
  17. Remove the bolt, release the harness retainers and position aside the harness.

    Torque: 71 lb.in (8 Nm)

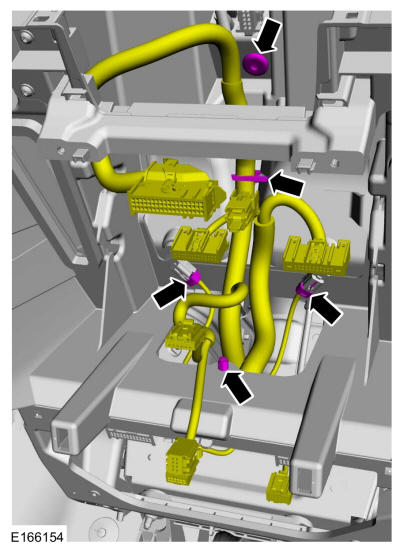

    GFD306422Courtesy of FORD MOTOR COMPANY
  18. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
  19. Move the steering wheel to the lowest position.

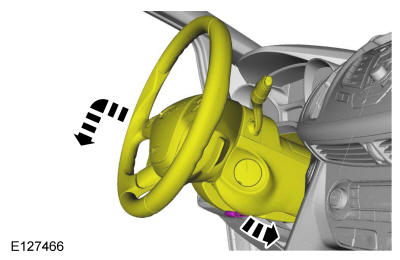

    GFD306423Courtesy of FORD MOTOR COMPANY

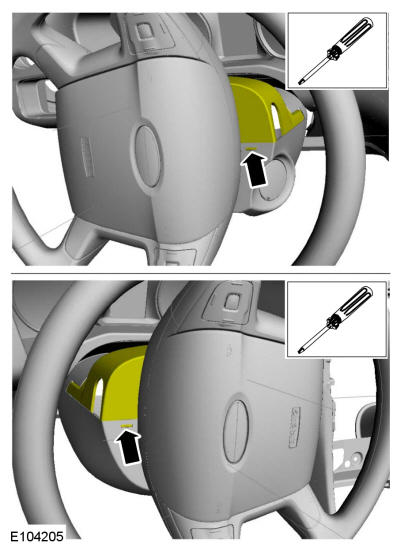

  20. Release the upper steering column shroud tabs.
    GFD306424Courtesy of FORD MOTOR COMPANY
  21. Center the steering wheel.
    GFD306425Courtesy of FORD MOTOR COMPANY

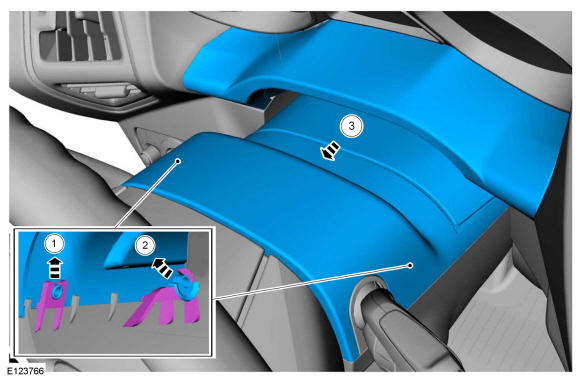

  22. Remove the upper steering column shroud and lower IPC trim panel.
    GFD305543Courtesy of FORD MOTOR COMPANY

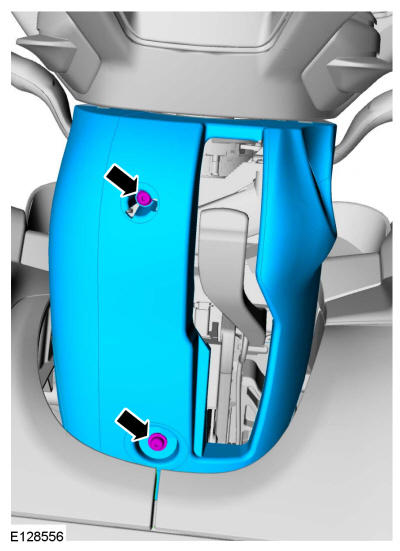

  23. Remove the bolts and the lower steering column shroud.
    GFD306426Courtesy of FORD MOTOR COMPANY

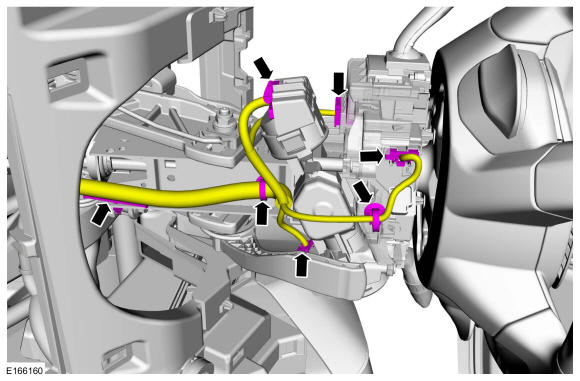

  24. Disconnect the electrical connectors.
    GFD306427Courtesy of FORD MOTOR COMPANY

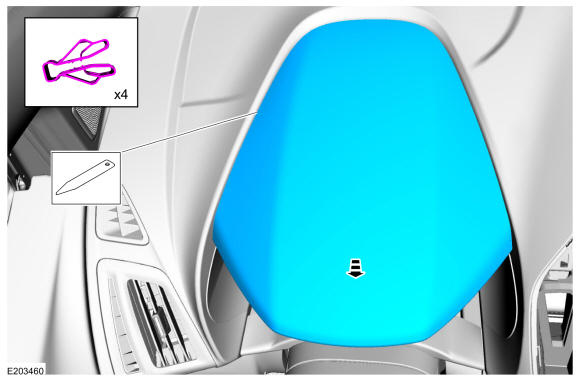

  25. Remove the upper trim panel.
    GFD306428Courtesy of FORD MOTOR COMPANY

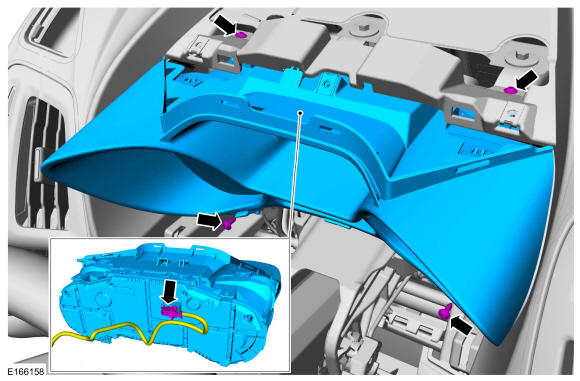

  26. Remove the screws and the IPC.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD306429Courtesy of FORD MOTOR COMPANY
  27. On both sides. Refer to: A-Pillar Trim Panel .
  28. Disconnect the electrical connectors.
    GFD306399Courtesy of FORD MOTOR COMPANY
  29. Remove the retainers and the insulation panel.
    GFD305440Courtesy of FORD MOTOR COMPANY
  30. Remove the glove compartment hinge pins and the glove compartment.
    GFD305441Courtesy of FORD MOTOR COMPANY
  31. Position aside the weather strip and remove the trim panel.

    • If equipped, disconnect the electrical connector.

    GFD306401Courtesy of FORD MOTOR COMPANY
    1. Remove the passenger side air bag to in-vehicle cross beam bolts.

      Torque: 80 lb.in (9 Nm)

    2. Disconnect the electrical connectors release the harness retainers and position aside harness.

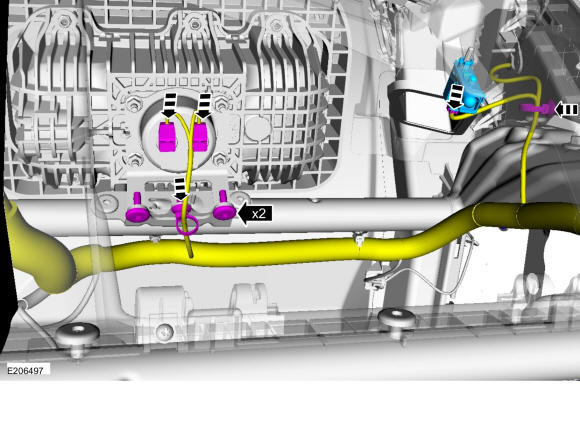

    GFD306430Courtesy of FORD MOTOR COMPANY
  32. NOTE: Do not allow the steering wheel to rotate while the steering shaft is disconnected or damage to the clockspring may result.

    Remove the bolt.

    Torque: 21 lb.ft (28 Nm)

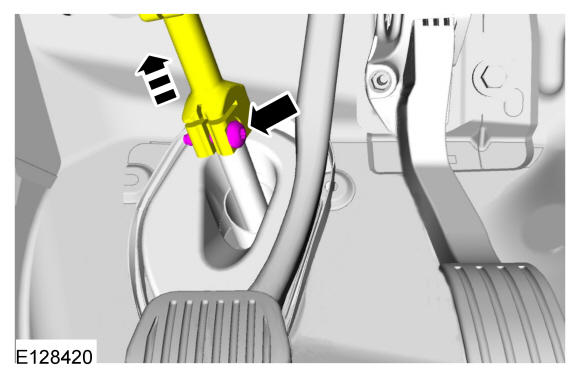

    GFD306431Courtesy of FORD MOTOR COMPANY

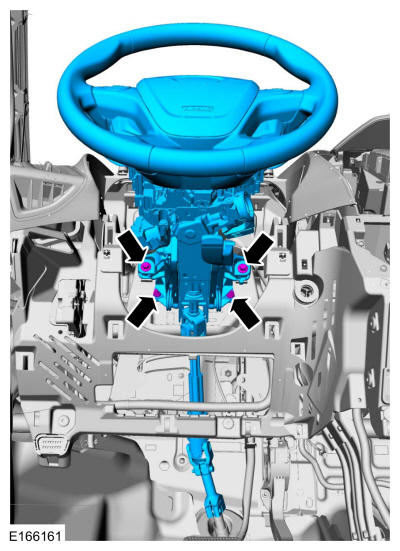

  33. Remove the bolts and the steering column.

    Torque: 18 lb.ft (25 Nm)

    GFD306432Courtesy of FORD MOTOR COMPANY

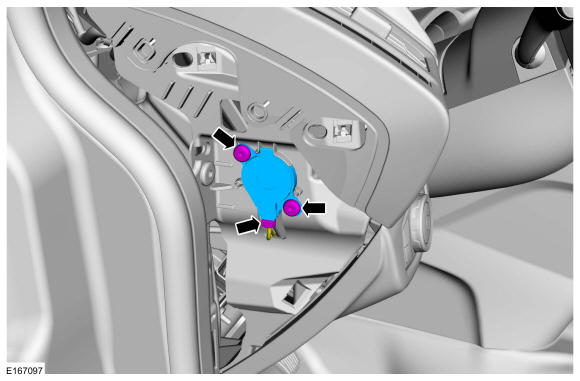

  34. Remove the retainers and the parking aid speaker.

    • Disconnect the electrical connector.

    GFD306433Courtesy of FORD MOTOR COMPANY

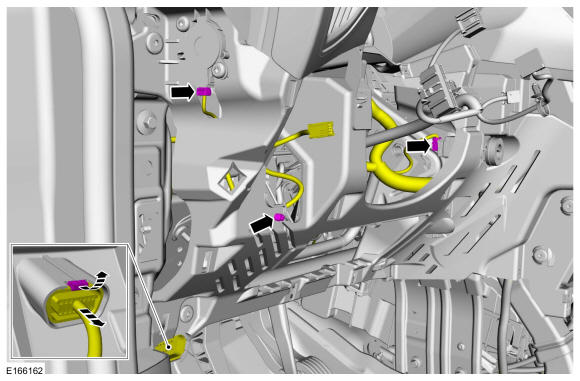

  35. Disconnect the electrical connectors and position the harness aside.
    GFD306434Courtesy of FORD MOTOR COMPANY

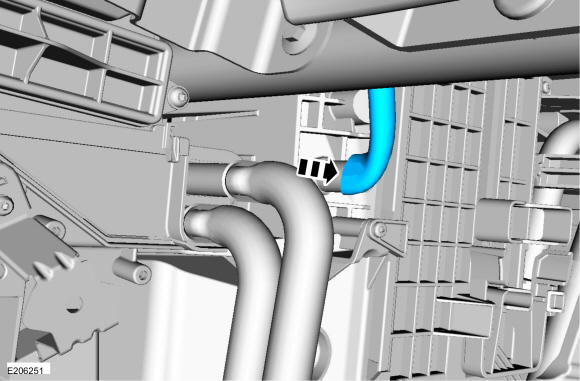

  36. Remove the hose.
    GFD306435Courtesy of FORD MOTOR COMPANY

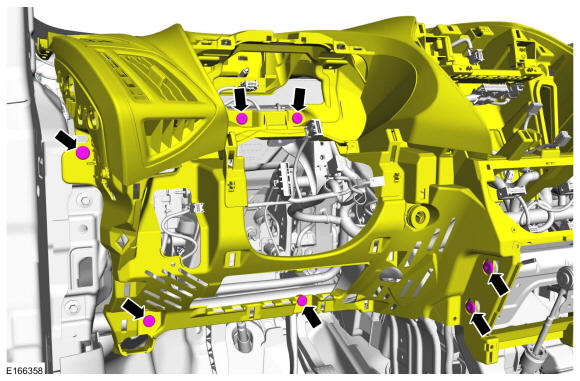

  37. Remove the bolts.

    Torque: 80 lb.in (9 Nm)

    GFD306436Courtesy of FORD MOTOR COMPANY
  38. Remove the bolts.

    Torque: 80 lb.in (9 Nm)

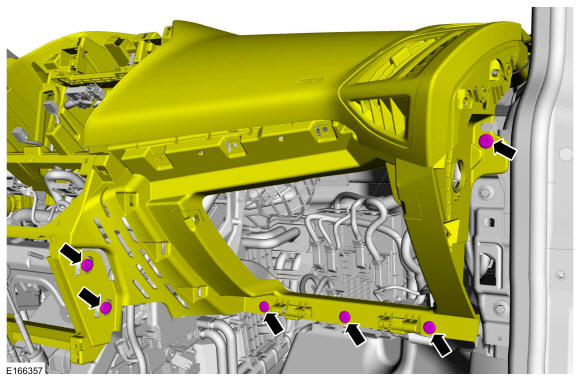

    GFD306437Courtesy of FORD MOTOR COMPANY
  39. NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

    Remove the instrument panel upper section.

    • Disconnect the electrical connector, release the harness retainers and position aside the harness.

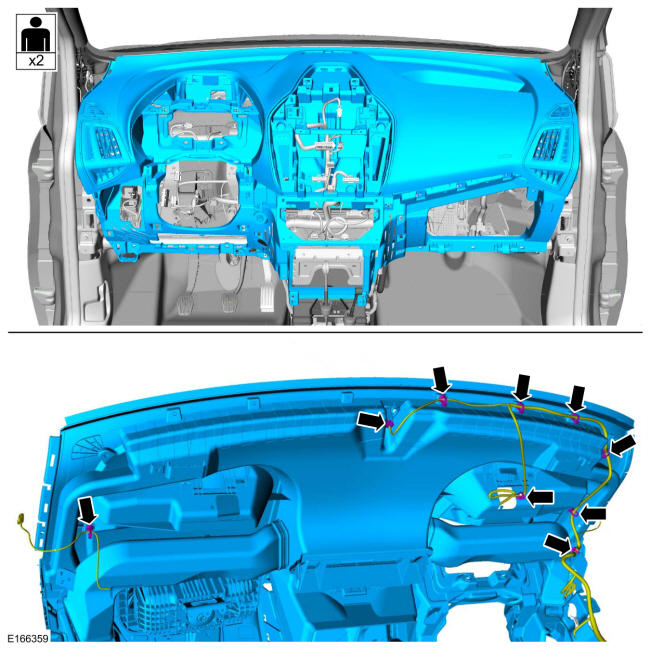

GFD306438Courtesy of FORD MOTOR COMPANY
