In-Vehicle Crossbeam: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel wiring harness.

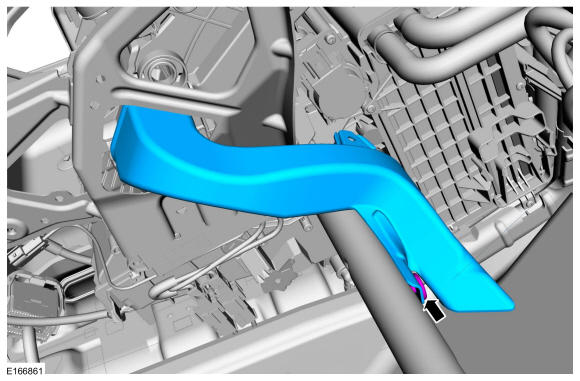

Remove the retainer and the RH footwell vent duct.

Courtesy of FORD MOTOR COMPANY

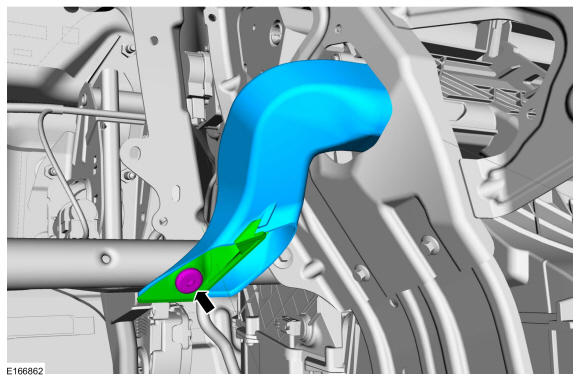

Remove the retainer, the air deflector and the LH footwell vent duct.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
1. Remove the bolts and the LH instrument panel lower support bracket.
  Torque: 18 lb.ft (25 Nm)

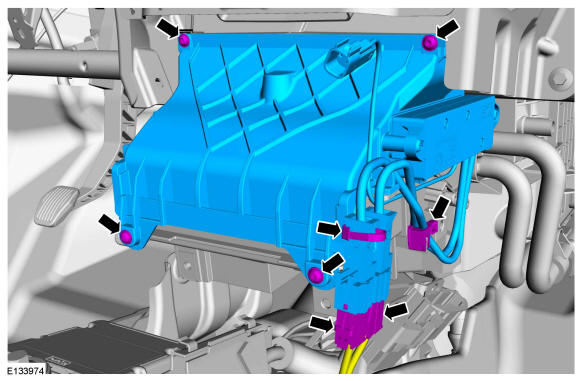

- Remove the retainers and the air plenum bezel.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

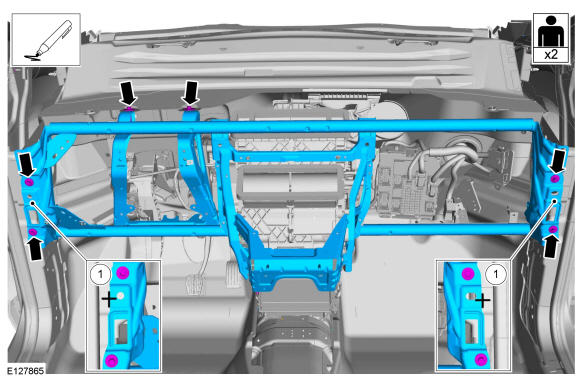

Remove the vehicle cross beam support bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
On both sides. Refer to: Front Door .
Remove the in-vehicle cross beam to cowl bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

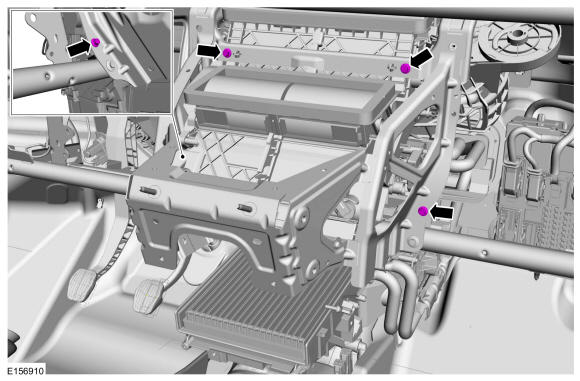

Remove the bolts and the in-vehicle crossbeam assembly.
Torque: 18 lb.ft (25 Nm)
