Floor Console - Vehicles With: Double Passenger Seat: Removal

    • Remove the 2 rear floor console section retainer covers and the parking brake lever panel. Use Special Service Tool: 501-125 Remover, Grab Handle Cover.

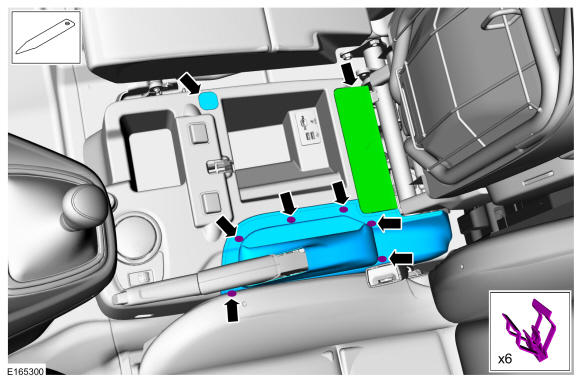

    GFD306376Courtesy of FORD MOTOR COMPANY
    • Remove the retainers and floor console upper trim panel.

    • Disconnect the electrical connectors.

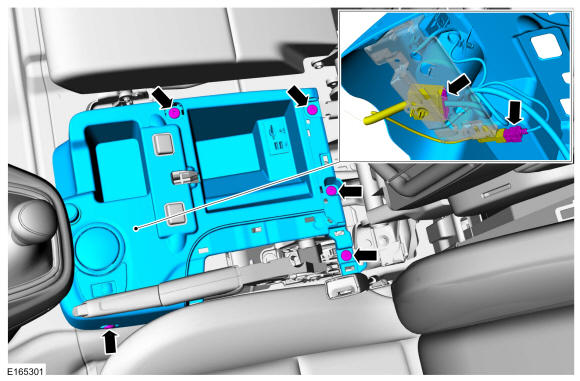

GFD306377Courtesy of FORD MOTOR COMPANY
