Battery Cables - 2.5L Duratec (125kW/170PS): Removal

NOTE: Removal steps in this procedure may contain installation details.

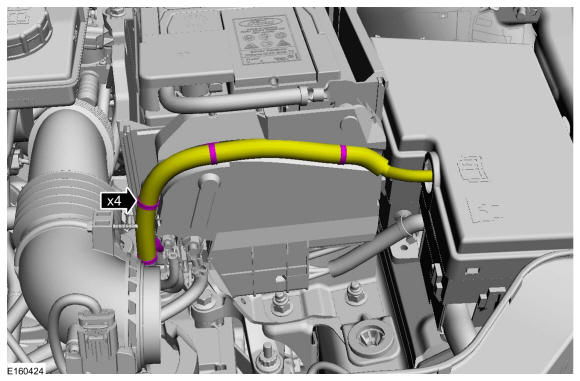

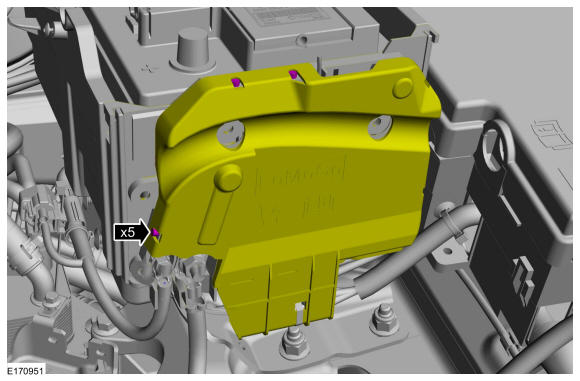

1. If equipped.

   Courtesy of FORD MOTOR COMPANY

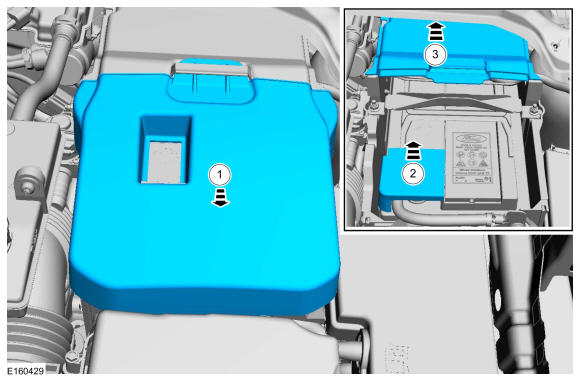

2. Remove the air cleaner. Refer to: Air Cleaner .

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

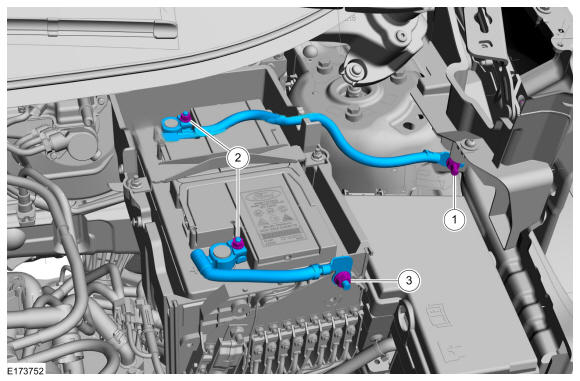

3. Torque: 1: 16 lb.ft (22 Nm) 2: 44 lb.in (5 Nm) 3: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

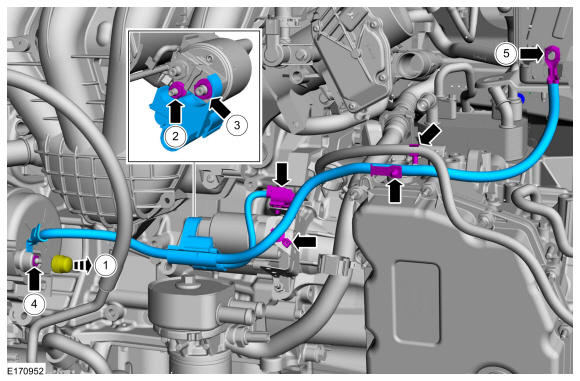

4. Torque: 2: 53 lb.in (6 Nm) 3: 106 lb.in (12 Nm) 4: 150 lb.in (17 Nm) 5: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
