Battery - 2.5L Duratec (125kW/170PS): Removal

1. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
2. Remove the air cleaner. Refer to: Air Cleaner .
3. Release the clips and position aside the main wiring harness.

   Courtesy of FORD MOTOR COMPANY

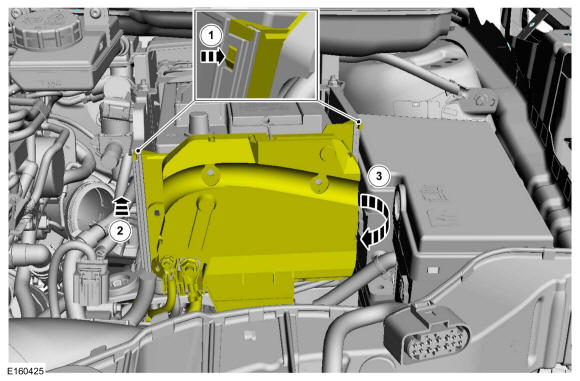

4. Release the tabs and position aside the high current BJB.

   Courtesy of FORD MOTOR COMPANY

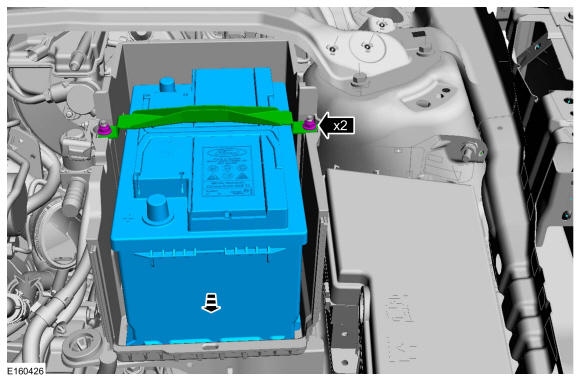

5. Remove the nuts, battery hold-down bracket and the battery.

   Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
