Outer Constant Velocity (CV) Joint Boot: Removal

  1. Remove the inner CV joint boot. Refer to: Inner Constant Velocity (CV) Joint Boot .

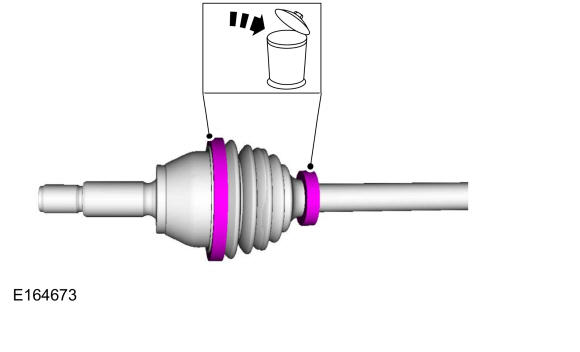

  2. Remove and discard the CV joint boot clamps.
    GFD303800Courtesy of FORD MOTOR COMPANY
  3. Remove the CV joint boot.
GFD303801Courtesy of FORD MOTOR COMPANY
