Parking Brake Cable: Installation

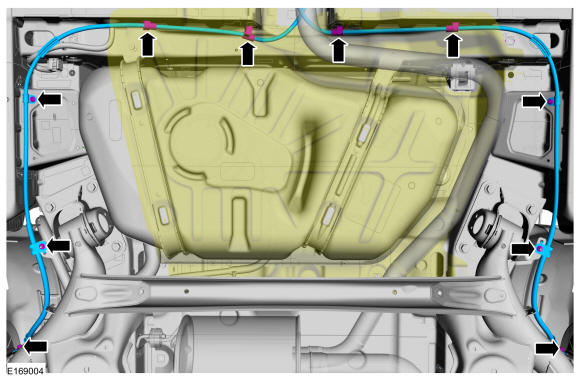

  1. Install the parking brake cable, bracket bolts and nuts. Attach the parking brake cable retainers.

    Torque: 89 lb.in (10 Nm)

    GFD303865Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
  3. Adjust the parking brake cables. Refer to: Parking Brake Cable Adjustment .
