Rear Brake Pads: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove wheel and tire. Refer to: Wheel and Tire .
  2. Remove the brake caliper spring.
    GFD303843Courtesy of FORD MOTOR COMPANY
  3. Remove the caps.
    GFD303837Courtesy of FORD MOTOR COMPANY
  4. Remove the brake caliper guide pins and position aside the brake caliper.

    Torque: 21 lb.ft (28 Nm)

    GFD303844Courtesy of FORD MOTOR COMPANY
  5. NOTE: Note the position of each component before removal.
    NOTE: Make sure that the mating faces are clean and free of foreign material.

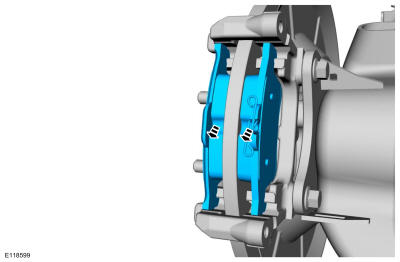

    Remove the brake pads.

    GFD303845Courtesy of FORD MOTOR COMPANY

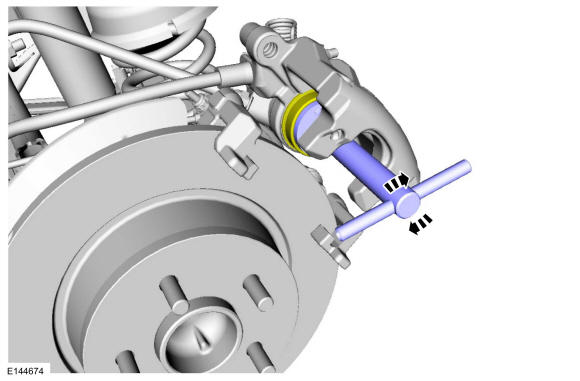

  6. Retract the brake caliper pistons into the brake caliper bore. Use the General Equipment: Brake Caliper Piston Retractor
GFD303846Courtesy of FORD MOTOR COMPANY
