Brake Vacuum Pump: Removal

NOTE: Removal steps in this procedure may contain installation details.

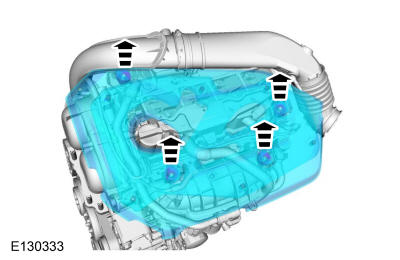

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

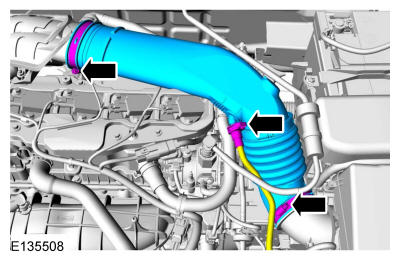

- Disconnect and position aside the crankcase ventilation tube.
- Loosen the clamps and remove the air cleaner outlet pipe.
Courtesy of FORD MOTOR COMPANY

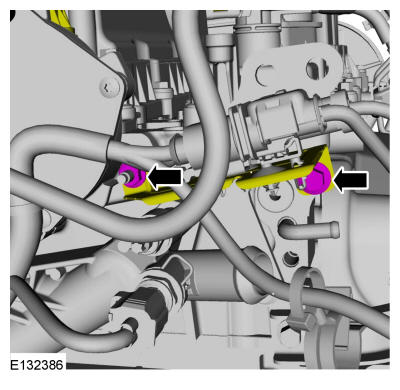

Remove the nut, the bolt and position aside the engine harness and bracket.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

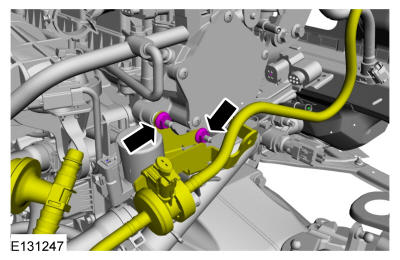

Remove the nuts and position aside the evaporative emission purge valve and mounting bracket.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

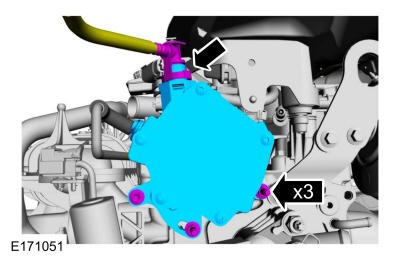

1. Release the coupling and disconnect the vacuum tube.
2. Remove the bolts and vacuum pump.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the couplings are aligned.

NOTE: Note the position of the components before removal.

NOTE: Make sure that the mating faces are clean and free of foreign material.

Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
