Brake Vacuum Pump: Installation

NOTE: Make sure that the components are installed to the position noted before removal.

To install, reverse the removal procedure.

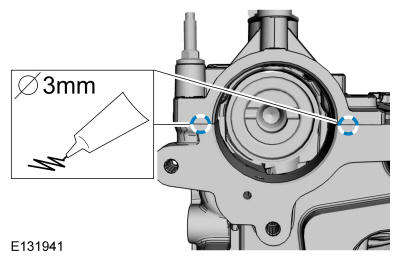

Apply an 3mm bead of the specified sealant in the location shown.
Material: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY
