Front Brake Disc Shield: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake disc. Refer to: Brake Disc .

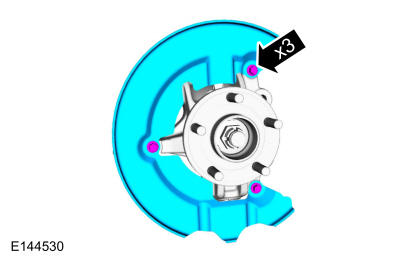

  2. Remove the bolts and the brake disc shield.

    Torque: 22 lb.ft (30 Nm)

GFD303829Courtesy of FORD MOTOR COMPANY
