Front Brake Caliper: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

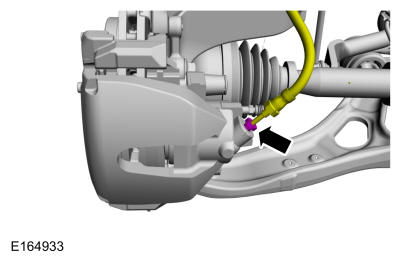

  2. Loosen the brake hose fitting and disconnect the brake hose.
    GFD303818Courtesy of FORD MOTOR COMPANY
  3. Remove the brake caliper spring.
    GFD303819Courtesy of FORD MOTOR COMPANY

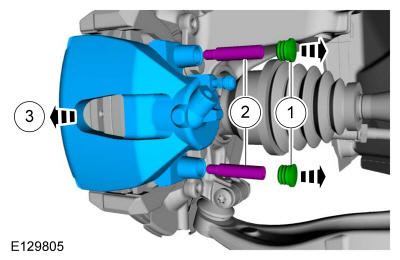

    1. Remove the caps.
    2. Remove the brake caliper guide pin bolts.

      Torque: 21 lb.ft (28 Nm)

    3. Remove the brake caliper.
    GFD303820Courtesy of FORD MOTOR COMPANY
  5. Remove the outboard brake pad.
    GFD303821Courtesy of FORD MOTOR COMPANY
  6. Remove the inboard brake pad.
GFD303822Courtesy of FORD MOTOR COMPANY
