Sliding Door Fixed Window Glass - Vehicles With: Rear Power Windows: Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the sliding door trim panel. Refer to: Sliding Door Trim Panel .

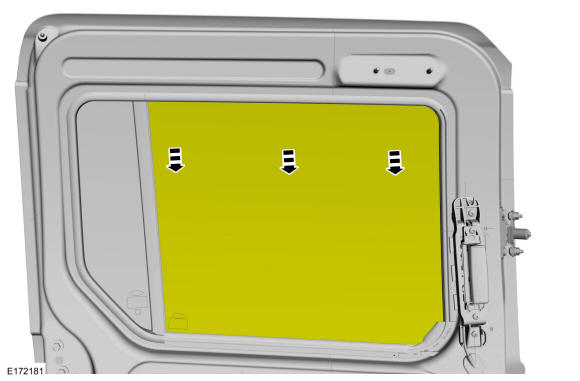

Lower the sliding door glass to the fully down position.

Courtesy of FORD MOTOR COMPANY

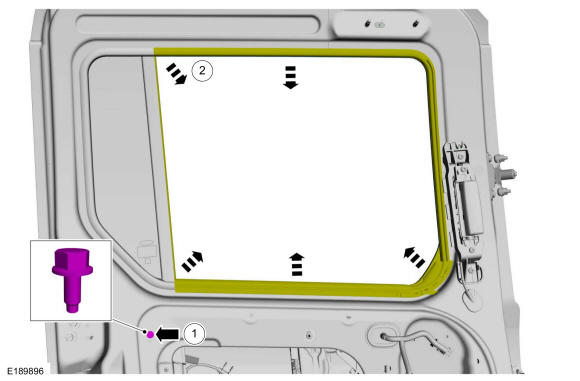

Position aside the sliding door window glass top run.
1. Remove the aft sliding door window run lower bolt.
  Torque: 80 lb.in (9 Nm)
2. Position aside the sliding door window glass top run.
Courtesy of FORD MOTOR COMPANY

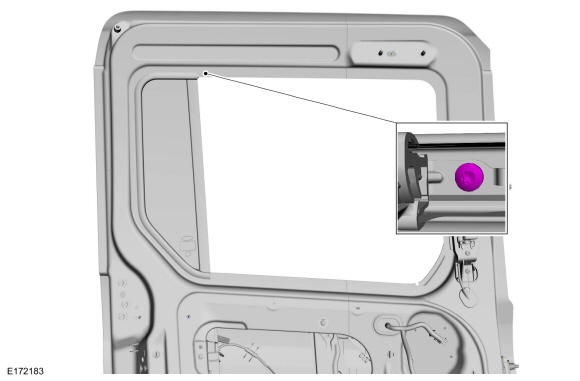

Remove the aft sliding door window run upper bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

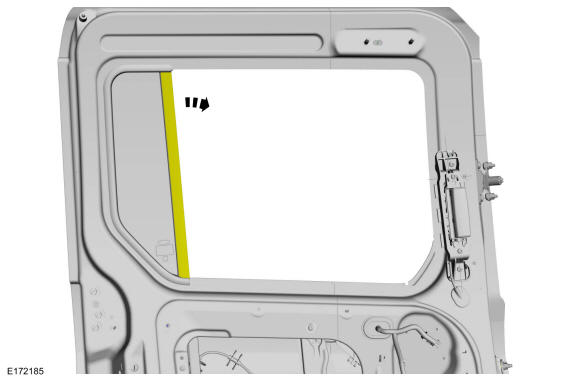

Position aside the aft sliding door window run.

Courtesy of FORD MOTOR COMPANY

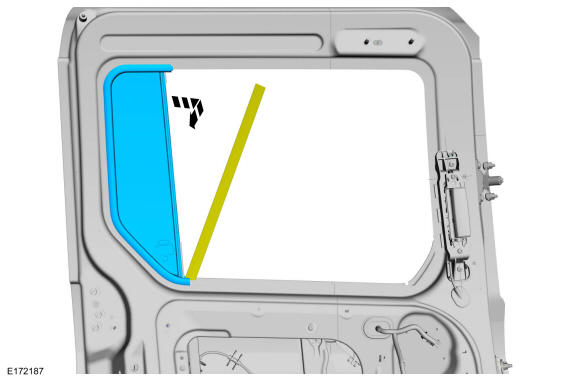

Remove the sliding door fixed window glass.

Courtesy of FORD MOTOR COMPANY
