Front Door Glass Top Run: Removal

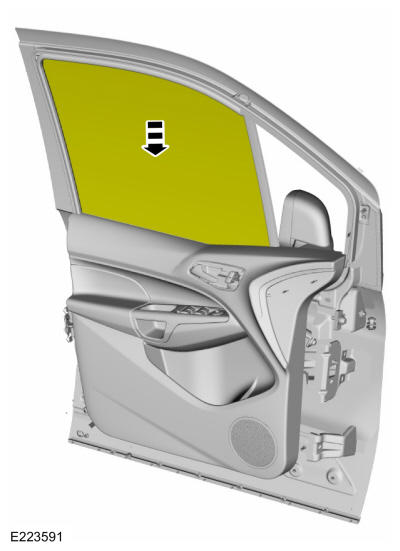

  1. Lower the front door window glass to the position indicated.
    GFD306368Courtesy of FORD MOTOR COMPANY
  2. Remove the exterior rear view mirror. Refer to: Exterior Mirror .

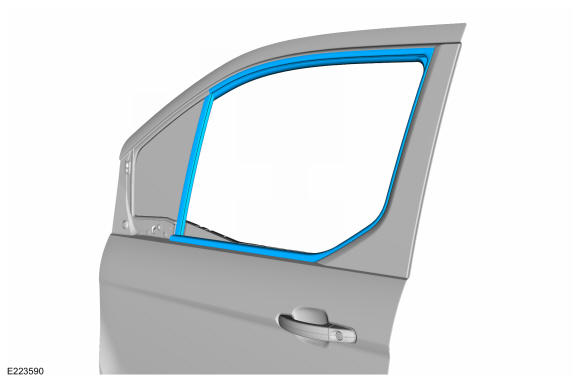

  3. Remove the front door glass top run.
GFD306369Courtesy of FORD MOTOR COMPANY
