Second Row Single Seat Backrest Cover: Removal

  1. Remove the second row seat head restraint guide sleeve. Refer to: Second Row Seat Head Restraint Guide Sleeve .
  2. NOTE: Follow the unique instructions or graphic for this step in the installation.

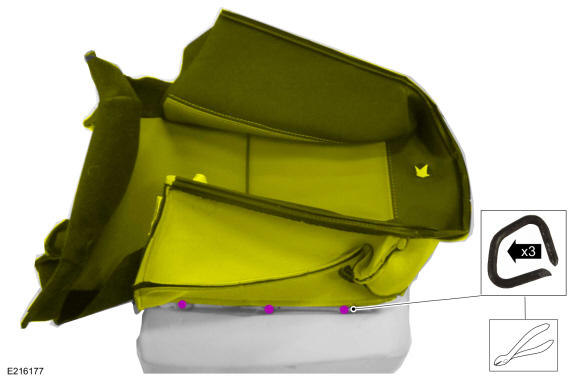

    On both sides. Remove the backrest cover-to-foam hog rings.

    GFD306299Courtesy of FORD MOTOR COMPANY
  3. NOTE: Follow the unique instructions or graphic for this step in the installation.

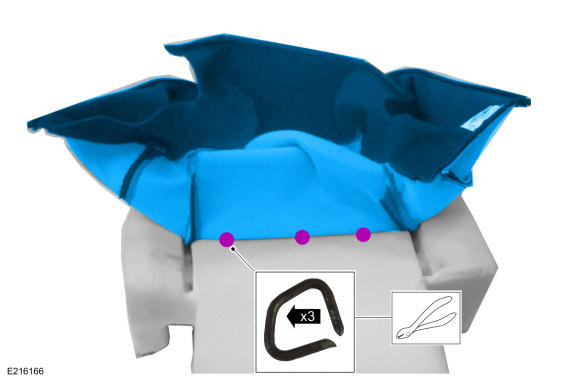

    Remove the backrest cover-to-foam hog rings and remove the second row single seat backrest cover.

GFD306300Courtesy of FORD MOTOR COMPANY
