Second Row Seat Head Restraint Guide Sleeve: Removal

1. Depress the locking tabs and remove the head restraint.

   Courtesy of FORD MOTOR COMPANY

2. If equipped. Remove the armrest.
   1. Position the armrest to an approximate 60 degree angle.
   2. Pull the armrest outward to release.

   Courtesy of FORD MOTOR COMPANY

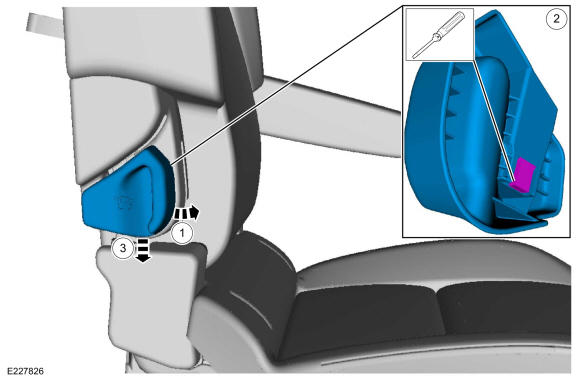

3. If equipped. Remove the recline handle.
   1. Rotate the recline handle to the release position.
   2. Release the retaining tab.
   3. Remove the recline handle.

   Courtesy of FORD MOTOR COMPANY

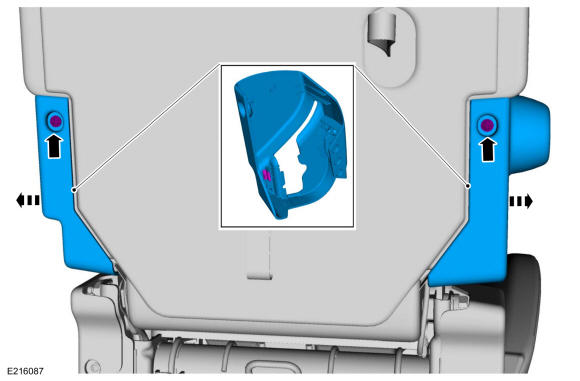

4. On both sides. Remove the fasteners and the recliner upper covers.

   Courtesy of FORD MOTOR COMPANY

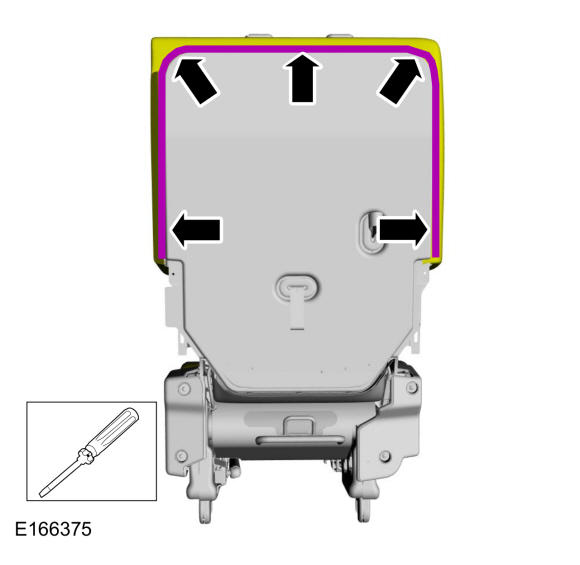

5. Release the backrest cover J-clips.

   Courtesy of FORD MOTOR COMPANY

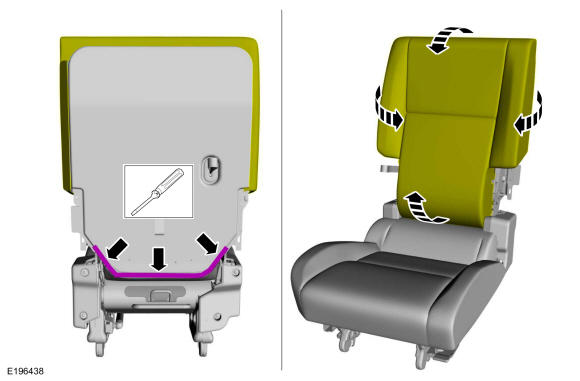

6. Release the backrest cover lower J-clip and invert the backrest cover.

   Courtesy of FORD MOTOR COMPANY

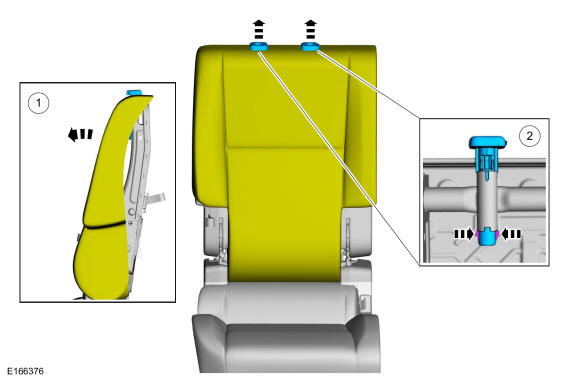

7. On both sides. Remove the head restraint guide sleeves.
   1. Position the cushion cover and foam pad away from the backrest frame.
   2. Release the lower locking tabs and remove the head restraint guide sleeve.

Courtesy of FORD MOTOR COMPANY
